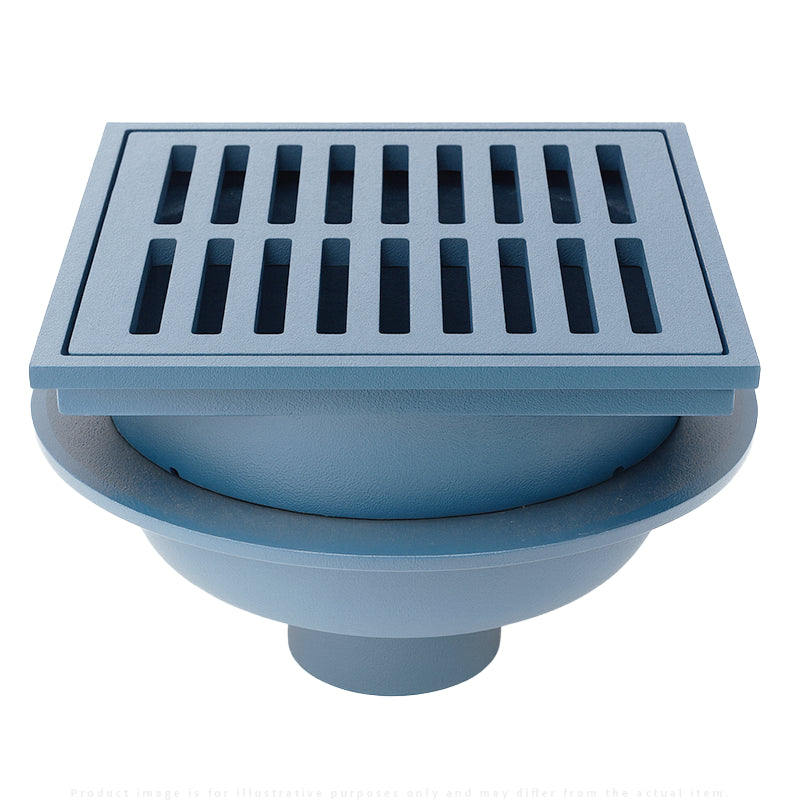

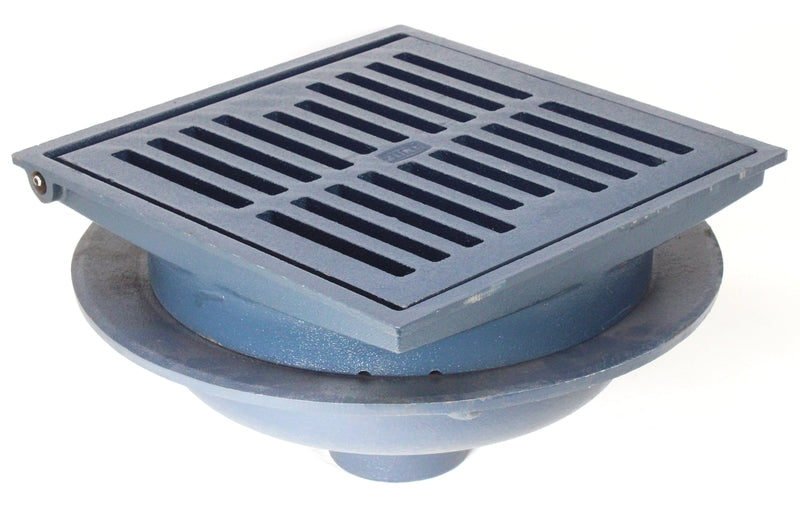

Zurn Z610-H | ZN610-H 12" Square Heavy-Duty Floor Drain with Hinged Grate.
Product Overview:
The Zurn Z610-H and ZN610-H are premium 12-1/2" square heavy-duty floor drains engineered for performance in commercial and industrial drainage systems. Designed with a Dura-Coated cast iron body and available in several top finishes—including cast iron, polished bronze, or polished nickel bronze—this model ensures dependable, long-lasting service in demanding environments.
The hinged grate design offers improved safety and access for maintenance, while Zurn's innovative contractor-friendly solutions reduce labor time and simplify installation. Optional features such as sediment buckets, test caps, and flashing clamps provide added versatility for a wide range of installation scenarios.
Features & Benefits:
-
Durable Construction: Dura-Coated cast iron body resists corrosion and supports heavy loads.
-
Hinged Grate Access: Integrated heavy-duty hinged grate allows for easy cleaning and inspections.
-
Customizable Top Options: Choose from cast iron, polished bronze, or polished nickel bronze tops for visual and performance compatibility.
-
Seepage Pan & Membrane Clamp: Prevents water intrusion and aids in watertight membrane sealing.
-
Flexible Outlet Types: Available in Inside Caulk, No-Hub, Inside Gasket, Threaded, and Neo-Loc connections to match various pipe systems.
-
Optional Sediment Bucket: Helps capture debris and prevent clogs (available in polypropylene, cast iron, or aluminum).
Specifications:
-

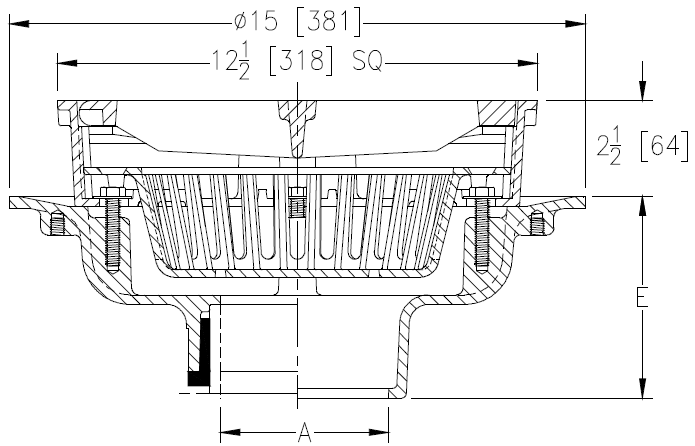

Top Size: 12-1/2" [318mm] square
-
Pipe Sizes Available: 2", 3", 4", 6", 8"
-
Grate Open Area: 42 square inches [271 cm²] (standard sizes), 56 square inches [for 8” size]
-
Body Height: Varies by outlet type (3-3/4" to 5-1/4")
-
Construction Materials:
-
Body: Dura-Coated cast iron
-
Grate: Duresist slotted grate, optional finishes
-
Optional Bucket: Polypropylene (standard), Cast Iron or Aluminum (optional)
-
Installation Tips:
-
Ensure a minimum body height clearance as outlined in the specification sheet.
-
Use membrane flashing clamps for watertight installations in membrane floor systems.
-
Always check local plumbing codes for outlet type requirements.
-
The hinged grate should be positioned for easy access and cleaning in high-traffic areas.
-
For added security in public or vandal-prone areas, consider adding the vandal-proof (-VP) secured top option.
FAQs:
Q: What applications is the Z610-H ideal for?
A: It is perfect for commercial kitchens, mechanical rooms, manufacturing plants, and any space requiring a reliable floor drainage system with high durability.
Q: Can this drain accommodate membrane waterproofing?
A: Yes, it comes standard with a combination membrane flashing clamp and frame to support membrane installations.
Q: Are sediment buckets included?
A: A suspended polypropylene sediment bucket is optional. Alternate materials like cast iron or aluminum are also available.
Q: What finishes are available for the top grate?
A: You can select from standard cast iron, polished bronze, or polished nickel bronze finishes.
Q: What is the advantage of the hinged grate?
A: It provides tool-free access for maintenance while preventing grate displacement.
