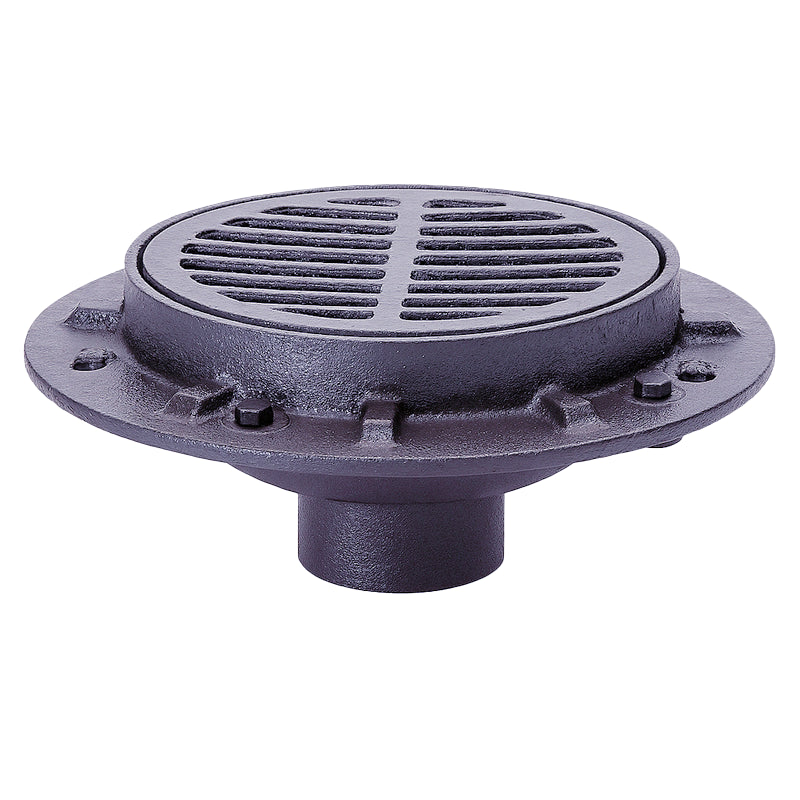

Zurn Z536 | ZN536 15-3/8″ Heavy-Duty Parking Deck Drain with Support Flange
Product Overview
The Zurn Z536 | ZN536 is a high-capacity, heavy-duty parking deck drain engineered for long-term durability and dependable performance. Built with a corrosion-resistant, Dura-Coated cast iron body and support flange, this 15-3/8″ diameter drain system is designed to handle the rigorous demands of commercial garages, decks, and exposed concrete environments.
Available with either a rugged cast iron top (Z536) or a polished nickel bronze top (ZN536), this model offers versatility and finish options that fit both utility and appearance standards. Its modular configuration supports multiple outlet sizes and ensures a secure, watertight fit on structural slabs.
Key Features & Benefits
-
Heavy-Duty Build
Designed for high-load environments such as parking structures, the Z536/ZN536 features robust construction to resist impact and wear. -
Dura-Coated Cast Iron Body
Long-lasting epoxy coating provides superior corrosion protection in exposed or wet environments. -
Support Flange with Gasket
Integral flange with factory-applied gasket enhances drainage stability and simplifies sealing to deck membranes. -
Slotted Grate Design
Optimized for debris resistance and high-volume water intake without sacrificing structural integrity. -
Interchangeable Tops
Choose from durable cast iron or refined nickel bronze finishes depending on the application and aesthetic preference. -
Multiple Connection Options
Available in a variety of outlet sizes to suit new construction or retrofit projects.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Z536 (Cast Iron), ZN536 (Nickel Bronze) |
| Diameter | 15-3/8″ [391mm] |
| Body Material | Dura-Coated cast iron |
| Grate Type | Heavy-duty slotted grate |
| Outlet Location | Bottom outlet |
| Mounting | Integral support flange with gasket |
| Application | Parking decks, garages, exposed slabs |
| Configuration | Modular with connection size options |
Why Choose This Drain?
-
Built for challenging commercial applications
-
High-strength materials stand up to load and weather
-
Supports a clean, secure installation with built-in sealing flange
-
Customizable for your specific connection and finish requirements
-
Simplifies long-term maintenance with durable, replaceable parts
Frequently Asked Questions
Q: Is this drain compatible with membrane waterproofing systems?
Yes, it includes a gasketed support flange for watertight integration with membrane systems.
Q: Can I choose different top finishes?
Absolutely. The drain is available with either a cast iron or a polished nickel bronze top.
Q: Is this drain suitable for vehicle traffic?
Yes, it’s engineered for heavy-duty applications like parking decks and drive lanes.
Q: What size connections are available?
Multiple outlet sizes are available to match your pipe configuration needs.
