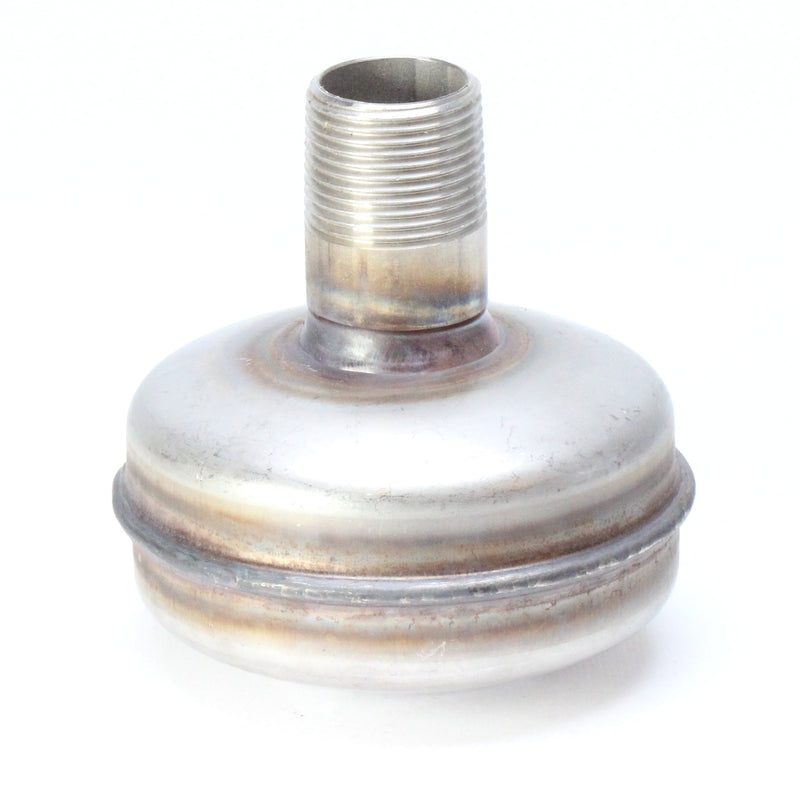

Zurn Z1700 Shoktrol Water Hammer Arrestor Bellows Style All Stainless Steel.
Overview:
- The Z1700 Shoktrol Water Hammer Arrestor protects water lines against over-pressure during surges following quick valve closure.
- The water hammer arrestor should be installed immediately upstream of the quick closing valve that is causing the water hammer.
Features & Benefits:
- All 18-8 stainless steel construction
- Hermetically sealed bellows
Product Specification:
ZURN Z1700 Shoktrol Water Hammer Arrestors are regularly furnished in all stainless steel construction. Pipe threads are accurately machined to assure tight connection. 3/4" [19mm] male I.P.S. inlet is standard for the 100 and 200 size units, while 1" [25mm] male I.P.S. inlet is standard for sizes 300 thru 600.
Where required in piping systems, properly sized water hammer arrestors shall be ZURN Z1700 (specify size) with nesting type bellows contained within a casing having sufficient displacement volume to dissipate the calculated kinetic energy generated, in the piping system. Both casing and bellows constructed of Type 304 stainless steel.
Standards Compliance:
- PDI WH-201
- ANSI A112.26.1M
- ASSE 1010
Technical Downloads:
- Zurn Z1700: Specification Submittal
- Zurn Z1700: Installation Instructions
Media:
Mitigating Water Hammer Learning Video:
Zurn Z1700 Upgrades: Watts SG, JR Smith 5000, Mifab WHB, PPP SS.
