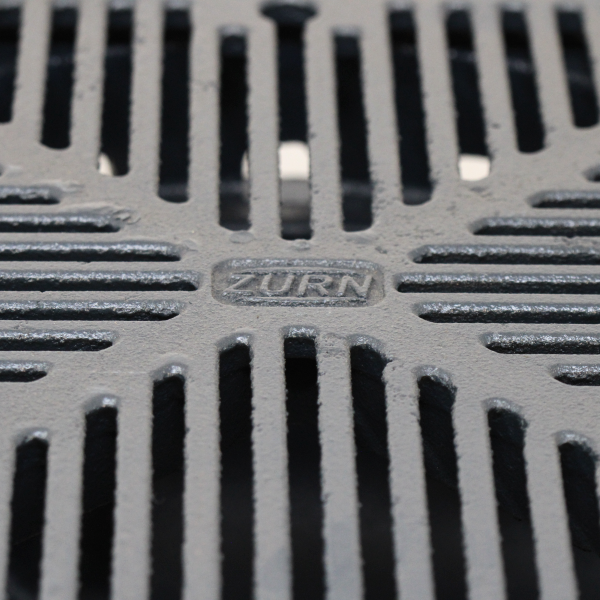

Zurn Z154 12" Square Top Promenade Deck Drain with Heel-Proof Grate and Rotatable Frame.
ENGINEERING SPECIFICATION:
ZURN Z154 12 [305] Square Top Prom-Deck drain, Dura-Coated cast iron body with rotatable light duty square promenade frame with seepage openings, frame clamps and light duty heel-proof grate.
Zurn Z154 Available As:
- Z-154 (Z154): D.C.C.I. Body with Top
- ZB-154 (ZB154): D.C.C.I. Body with Polished Bronze Top (Add 3/16 [5] to 2 [51] Dim & 5/8 [16] to 12 [305] Dim.)
- ZN-154 (ZN154): D.C.C.I. Body with Polished Nickel Bronze Top (Add 3/16 [5] to 2 [51] Dim & 5/8 [16] to 12 [305] Dim.)
Technical Documentation:
- Zurn Z154 Specification Submittal: Click Here.
- Zurn Z154 1Suffix Options Specification Submittals: Click Here.
Cross Reference:
Zurn Z154 12" Square Top Promenade Deck Drain with Heel-Proof Grate and Rotatable Frame Crosses:
- Z154 = Ancon / Watts: RD-100-CP-4, RD-102-CP-4, RD-103-CP-4, RD-104-CP-4, RD-106-CP-4.
- ZN154 = Ancon / Watts: RD-100-CP-1, RD-102-CP-1, RD-103-CP-1, RD-104-CP-1, RD-106-CP-1.
