Zurn Z1225 Wall Carrier Plate Type for Water Coolers and Drinking Fountains

ZurnSKU: ZUR-Z1225
No reviews

Number of Fixtures Carried: Single Fixture Carrier (Z1225)
Bi-Level Arrangement: No - Bi-Level Not Required
Price:
Sale Price$173.99 USD
Stock:
In Stock

Zurn Z1225 Wall Carrier Plate Type for Water Coolers and Drinking Fountains Engineering Specification: ZURN Z-1225 / Z-1225-D / Z-1225-BL / Z-1225-D-BL Water cooler support system with top and bottom plates. Complete with Dura-Coated rectangular steel uprights with welded feet, adjustable support plates, and mounting fasteners.

SPECIAL NOTES:

Dimensional data for letter dimensions depends upon fixture type and manufacturer. Different fixtures require different arm styles. See Zurn Carrier/Fixture Rough-In information at www.zurn.com for specific rough-in dimensions.

Z1225 will support one water cooler / drinking fountain, Z1225-D will support drinking fountain / water coolers, back-to-back.

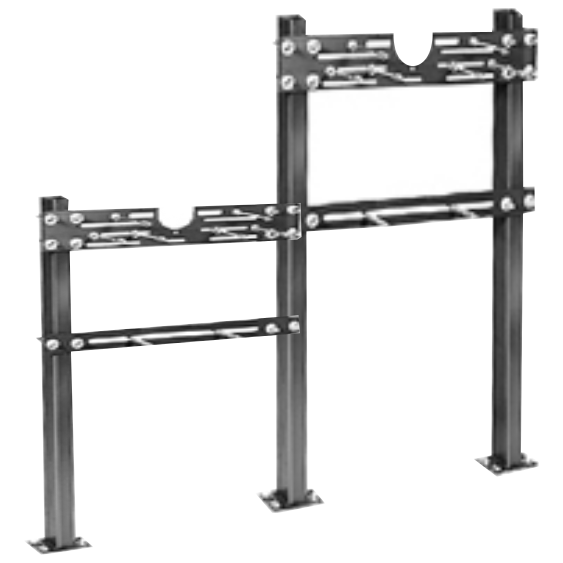

Z1225-BL Bi-Level Support carriers two water cooler / drinking fountains in a side x side arrangement, with one fixture lower than the other for ADA Handicapped compliance. Z1225-D-BL Bi-Level Support carriers for water coolers / drinking fountains, 2 per side, both sides of the wall.

Features & Benefits:

Plate type carrier system Uses floor-mounted upright
For water coolers and drinking fountains 200 lb. load capacity

Technical Documentation:

Zurn Z1225 Wall Carrier Plate Type for Water Coolers and Drinking Fountains Specification Submittal: Click Here.

Zurn Z1225-D Wall Carrier Plate Type for Water Coolers and Drinking Fountains Back-to-Back (Double) Specification Submittal: Click Here.

Zurn Z1225 Wall Carrier Plate Type for Water Coolers and Drinking Fountains Suffix Option Specification Submittals: Click Here.

Zurn Z1225 Wall Carrier Plate Type for Water Coolers and Drinking Fountains DWG Drawing File: Click Here.

Zurn Z1225 Wall Carrier Plate Type for Water Coolers and Drinking Fountains Carrier Engineering Guide: Click Here.

Cross Reference:

Zurn Z1225 Wall Carrier Plate Type for Water Coolers and Drinking Fountains Crosses:

  • Ancon / Watts CA-421-2
  • JR Smith
  • Mifab
