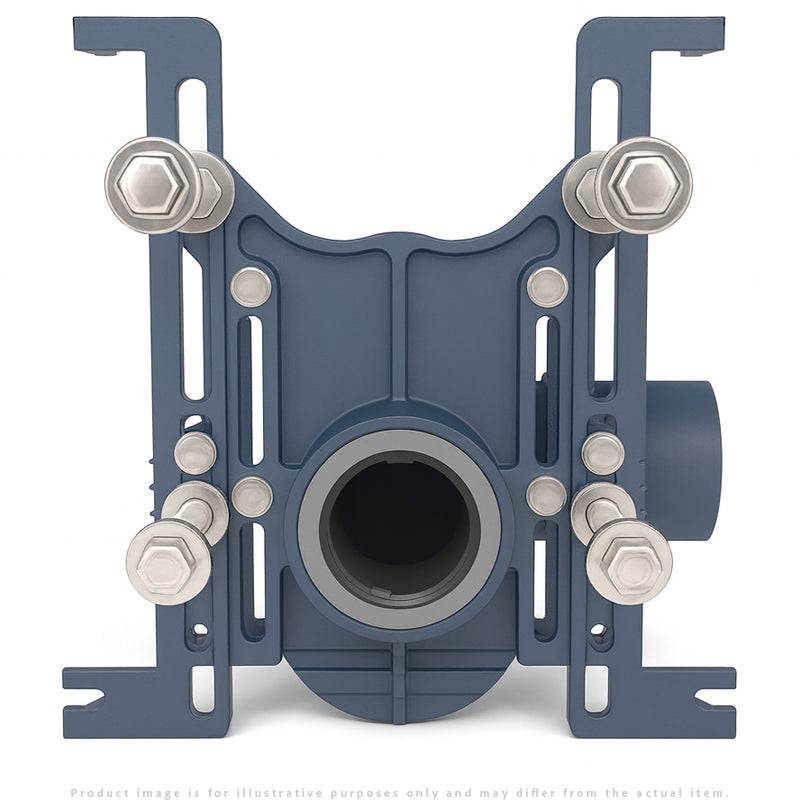

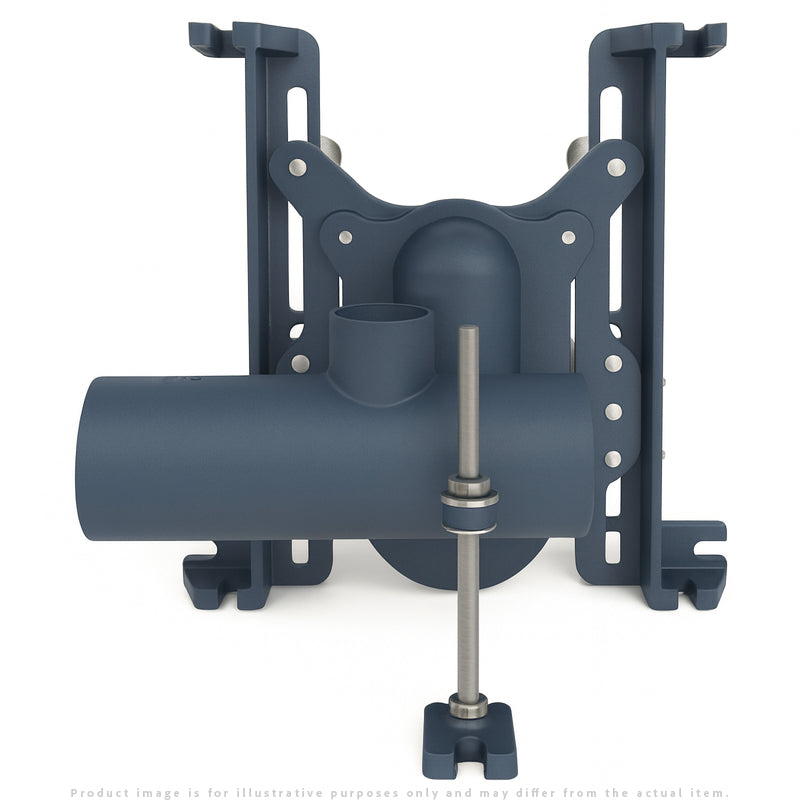

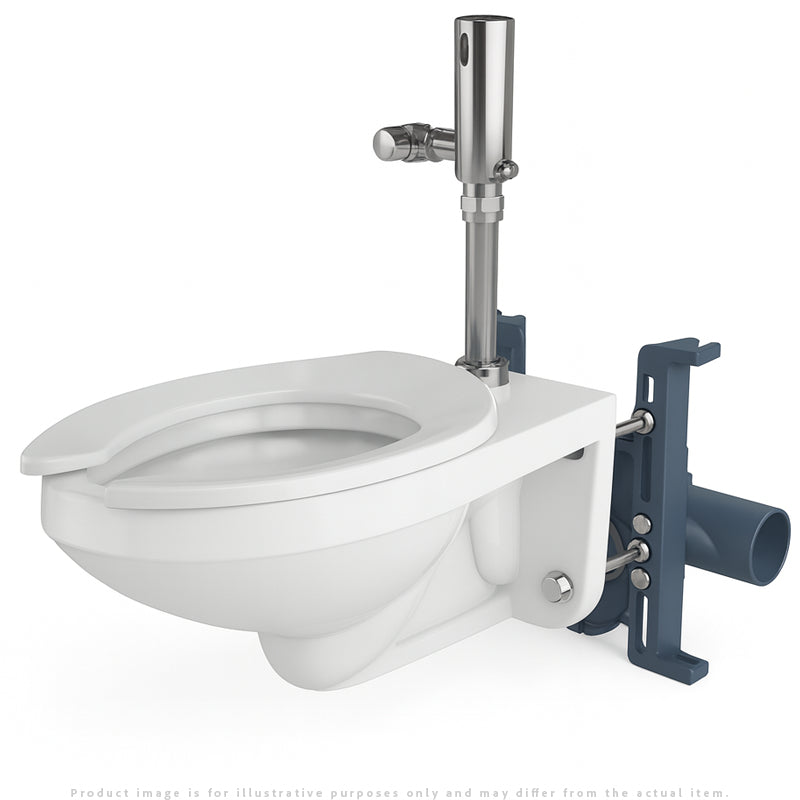

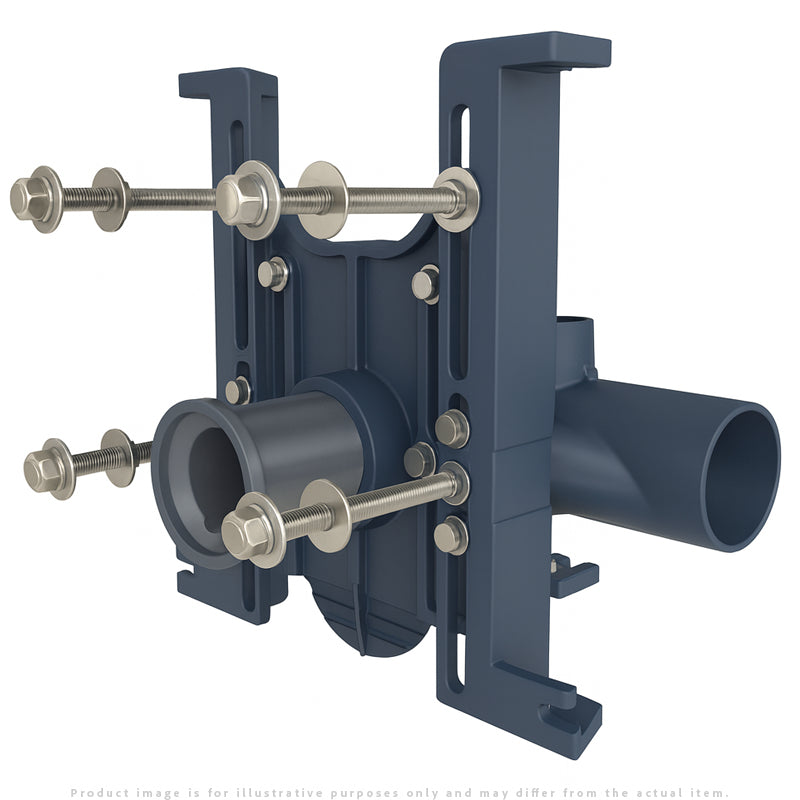

Zurn Z1201-NL4 EZCarry™ High Performance Water Closet Carrier, Left Hand Inlet with Flow to Right, Adjustable Horizontal Siphon Jet, 4" No Hub.
Notes:
-
Water / waste flows to left when seated on water closet.
Features & Benefits:
- Propel waste up to three times farther, reducing the possibility of low-flow system clog for overall plumbing system protection
- Protect facilities from excessive loading with standard system design for loading up to 500 lb.
- Install faster with labor saving features on a 30% lighter system
- Reduce maintenance emergencies with carriers designed to optimize waste line carry
- Maintain a sanitary environment with wall-mounted fixture
- Test the system and cut the coupling to length from the front with Zurn's patent-pending EZ-SET™ coupling option
- Reduce adjustment time with factory-assembled trim and universal feet pre-set at 5-1/2" rough-in height
Product Specification:
ZURN Z1201-N_4 EZCarry® horizontal siphon jet water closet carrier system with high performance waterway and 4" [102mm] no-hub connections. System includes Dura-Coated cast iron main fitting with hydro-mechanically optimized sweep and extended 2" [51mm] vent, adjustable gasketed faceplate, floor mounted pre-fab slotted foot supports with top anchoring pre-fab support base, heavy-duty 1/ 2" [13mm] rear anchor tie down, fixture bolts, trim, stud protectors, bonded “Neo-Seal” gasket, and corrosion resistant, adjustable 3" [76mm] dia. X 6" [152mm] coupling with integral test cap designed to increase flow velocity and line carry. EZCarry® system complies with the requirements of ASME A112.6.1M up to a 500 lbs [227 kg] static load rating.
Technical Documentation:
Zurn Z1201-N EZCarry™ Specification Submittal: Click Here.
Zurn Z1201-N EZCarry™ Suffix Option Specification Submittal Sheets: Click Here.
Zurn Z1201-N EZCarry™ Installation Instructions: Click Here.
Zurn Z1201-N EZCarry™ DWG File 4": Click Here.
Zurn Z1201-N EZCarry™ EZCarry Brochure: Click Here.
Zurn Z1201-N EZCarry™ Engineering Guide: Click Here.
Media:
Zurn Z1201-N EZCarry High Performance Water Closet Carrier System Overview:
Cross Reference:
Zurn Z1201-N EZCarry™ High Performance Water Closet Carrier Crosses:
- Ancon / Watts ISCA-101, ISCA-101-L (Z1201-NL4), ISCA-101-R (Z1201-NR4), ISCA-101-D (Z1201-ND4).
- J.R. Smith 0210Y-CAN, 0210Y, 0210LY (Z1201-NL4), 0210RY (Z1201-NR4), 0210DY (Z1201-ND4).
- Mifab MC-10, MC-10-L (Z1201-NL4), MC-10-R (Z1201-NR4).
