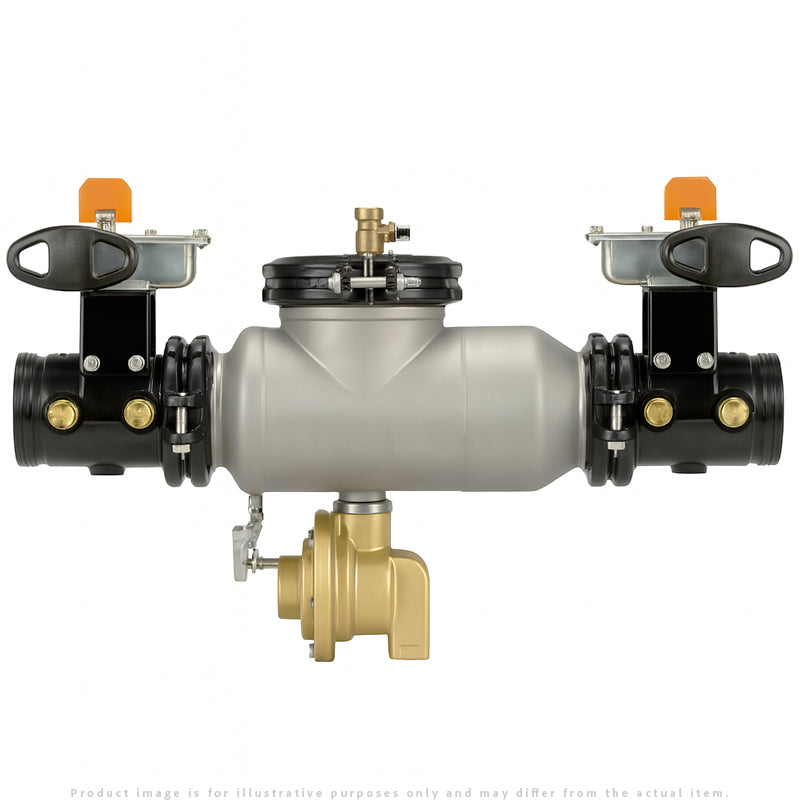

Zurn Wilkins 4" 375ASTBG RPZ Backflow Preventer | Stainless Steel & Butterfly Valves.
Product Overview:
Designed for mid-sized commercial systems, the Zurn Wilkins 4" 375ASTBG RPZ Backflow Preventer protects against serious contamination from backpressure and backsiphonage. Its stainless steel body, supervised grooved butterfly valves, and in-line serviceability make it an ideal solution for healthcare facilities, schools, and commercial buildings.
Features & Benefits:
-
Dual check valves and relief valve offer full RPZ protection
-
Space-conscious design with short body length
-
304L stainless steel body resists corrosion and scaling
-
NSF-certified for lead-free potable water systems
-
Supervised butterfly valves ensure visible shutoff status
-
Easy access for in-line maintenance
-
Complies with vertical and horizontal installation codes
Specifications:
-
Size: 4"
-
Body & Cover: 304L Stainless Steel
-
Max Pressure: 175 PSI
-
Test Pressure: 350 PSI
-
Max Temp: 140°F
-
End Connections: Grooved or Flanged
-
Standards: ASSE 1013, AWWA C511/C550, UL®, FM®, CSA®, IAPMO®, NSF 61 & 372
Installation Tips:
-
Mount between 12"–30" above floor level
-
Pipe relief valve to visible and approved drainage
-
Ensure clearances for test port access and valve movement
-
Avoid vaults subject to water accumulation
FAQs:
Q: Can this assembly be installed vertically?
A: Yes, it is approved for both vertical and horizontal configurations.
Q: What systems typically require a 4" RPZ?
A: Ideal for commercial plumbing systems, irrigation lines, and service mains.
