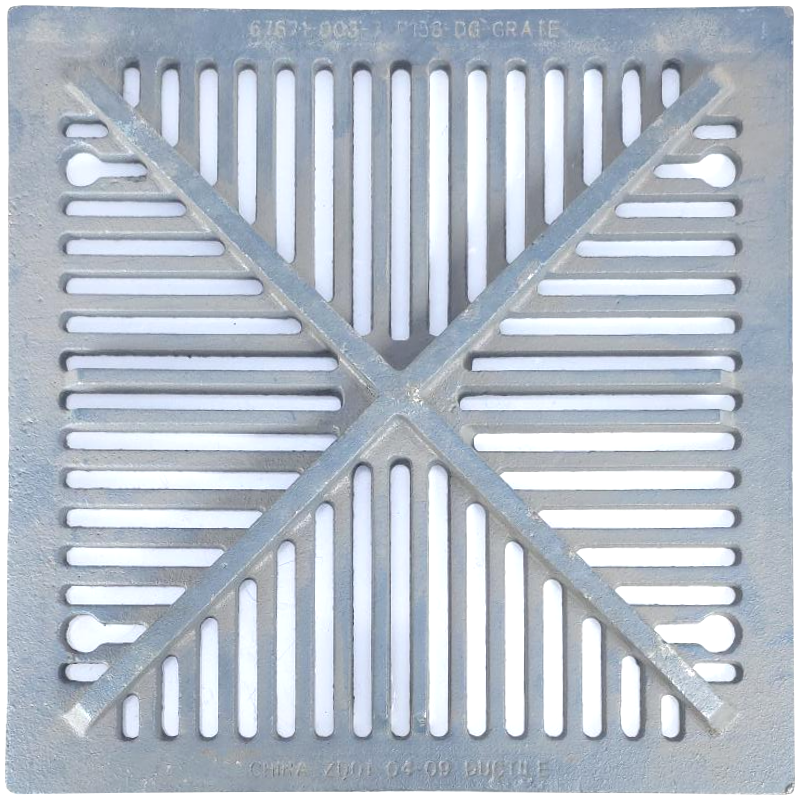

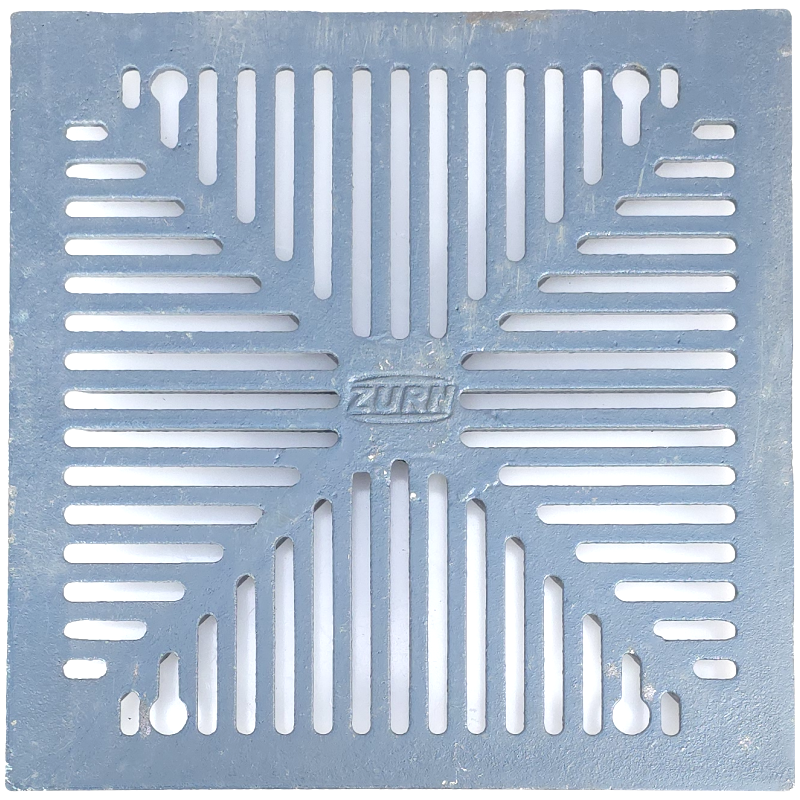

Zurn P158-DG-GRATE Replacement Grate for Z158 10" Square Deck Drains
Enhance the strength and performance of your Zurn deck drainage system with the Zurn P158-DG-GRATE Replacement Grate, precision-engineered to fit the Z158 Series 10" square top promenade deck drains with heel-proof grates and rotatable frames. This replacement is ideal for commercial and institutional settings where durability and safety are critical.
Crafted from Dura-Coated ductile iron, this heavy-duty grate is designed to replace standard cast iron slotted models. It features a reinforced rib pattern on the underside, significantly increasing its load-handling capacity. That makes it an excellent choice for high-traffic areas exposed to foot traffic and light-wheeled equipment.
Key Features:
-
Compatible with Zurn Z158 Series 10" square deck drains
-
Heel-proof design with rotatable frame compatibility
-
Reinforced ribbing underneath to withstand heavier loads
-
Dura-Coated ductile iron offers strength and corrosion resistance
-
Actual dimensions: 8-7/8" x 8-7/8"
-
Rim thickness: 1/4 inch
-
Casting numbers: 67671-1 and 67671-003-3
-
Refer to the Zurn Replacement Floor Drain Grate Guide for fit and compatibility
Whether you're replacing a damaged grate or upgrading for higher performance, the P158-DG-GRATE delivers long-term reliability for exposed outdoor decks, commercial walkways, or institutional maintenance areas.
