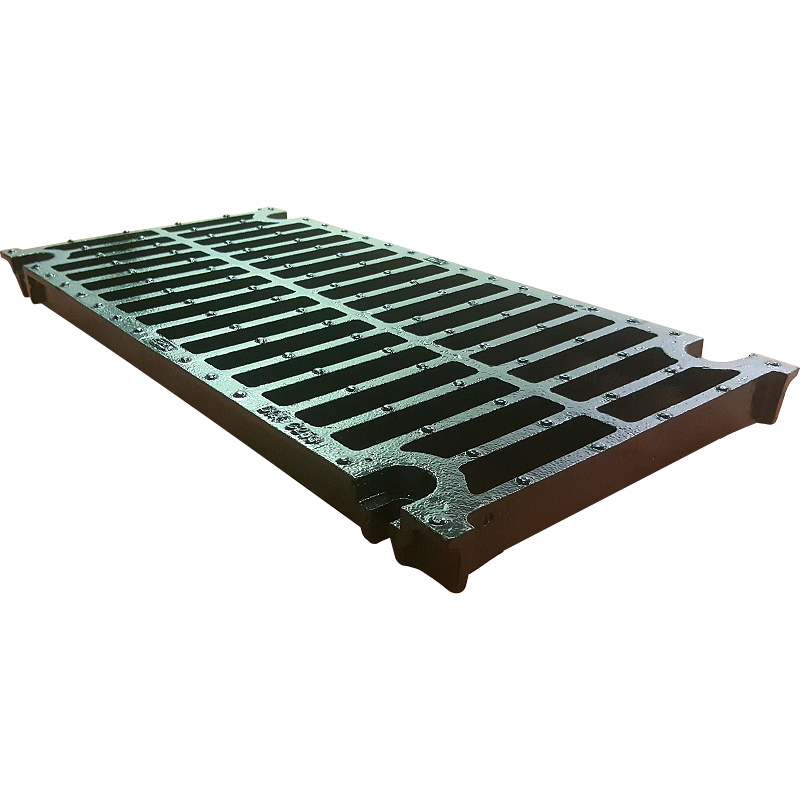

Zurn P12‑DGC‑3 | 12″ x 24″ Ductile Iron Slotted Grate – Heavy‑Duty, Vehicle Rated
Product Overview
The Zurn P12‑DGC‑3 is a robust, ductile iron slotted grate engineered for the Zurn Z887‑12 catch basin. At 11¼″ wide by 24″ long and weighing 14.7 lbs per foot, it offers heavy-duty performance, 86.7 sq in of open area per foot, and an H‑20 load rating, making it ideal for vehicle and truck traffic zones.
Key Features & Benefits
-
Heavy-Duty Construction
Made from high-strength ductile iron, this grate is built to endure vehicle loads, industrial wear, and harsh outdoor conditions. -
Exceptional Drainage Capacity
The generous open area of 86.7 sq in per foot ensures efficient water flow and reduces clogging in stormwater systems. -
Certified Performance
-
ANSI Heavy-Duty: Suitable for vehicle and truck traffic
-
DIN Class C: Industrial-grade strength
-
H‑20 Load Rated: Meets highway loading standards
-
-
Optimized Slot Design
Featuring wide 63/64″ slots to prevent debris accumulation, though not ADA-compliant or FAA-rated for aircraft zones.
Technical Specifications
| Specification | Details |
|---|---|
| Material | Ductile Iron |
| Overall Size | 11¼″ × 24″ |
| Weight | 14.7 lbs per linear foot |
| Open Area | 86.7 sq in/ft |
| ANSI Rating | Heavy-Duty, H‑20 Load Rated |
| DIN Rating | Class C |
| Slot Width | 63/64″ |
| ADA Compliant | No |
| Suitable For | Vehicle & Truck Traffic |
| Not Rated for | FAA applications |
Why Choose the P12‑DGC‑3?
-
Engineered for Road Loads: With a heavy-duty and H‑20 rating, it's ideal for parking lots, service drives, and industrial loading zones.
-
Efficient Stormwater Handling: Large open area delivers quick drainage and helps reduce flooding risk.
-
Reliable & Durable: Ductile iron resists corrosion, impact, and daily stress.
-
Seamless Integration: Designed to fit Zurn Z887‑12 catch basin systems.
Frequently Asked Questions
Q: Can this grate handle highway traffic?
A: Yes. It meets H‑20 ANSI standards, making it suitable for light vehicle traffic areas but not for FAA requirements.
Q: Is it ADA‑compliant?
A: No. The wide slot width and heavy-duty nature do not meet ADA or FAA walk-zone criteria.
Q: Will it fit a standard Z887‑12 basin?
A: Yes, it is designed specifically for Zurn Z887‑12 catch basins with matching dimensions and seating.
