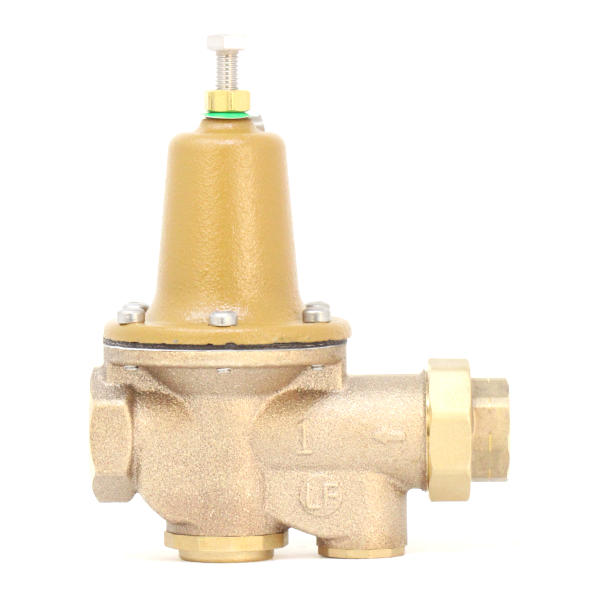

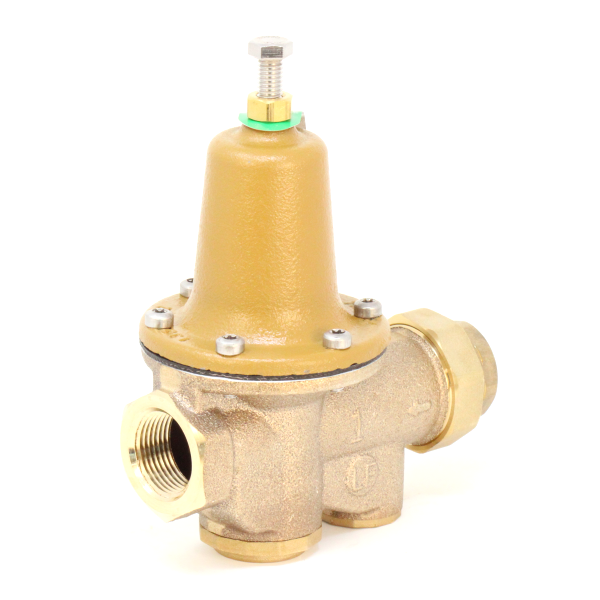

Watts LF25AUB-Z3 1" Lead Free Pressure Reducing Valve 0009309
This 1 inch lead free brass water pressure reducing valve is the standard model, designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
Features:
- Suitable for up to 300 psi
- Pressure range can be adjusted from 25 to 75 psi
- Sealed spring cage with stainless steel cage screws
- Temperature range is 33 to 180 degrees F
- Replaceable seat module
- Designed to reduce incoming water pressure to protect plumbing systems
- Integral stainless steel strainer removable for cleaning
- NPT threaded female union inlet by NPT female outlet
- Designed to reduce water consumption for commercial, industrial and residential applications
Literature:
