Watts ISCA-141 Series, Industry Standard 500 lb. Rated Thin Wall Vertical Water Closet Carrier.
Features & Benefits:
- 📏 For wall hung bowls on a vertical stack
- ✅ ASME A112.6.1M 500 lb. load rating
- 🔧 Compression seal nipple does not require sealants, positively holds test
- 🔄 Reversible uprights embossed with incremental height markings
ISCA-141 Product Overview:

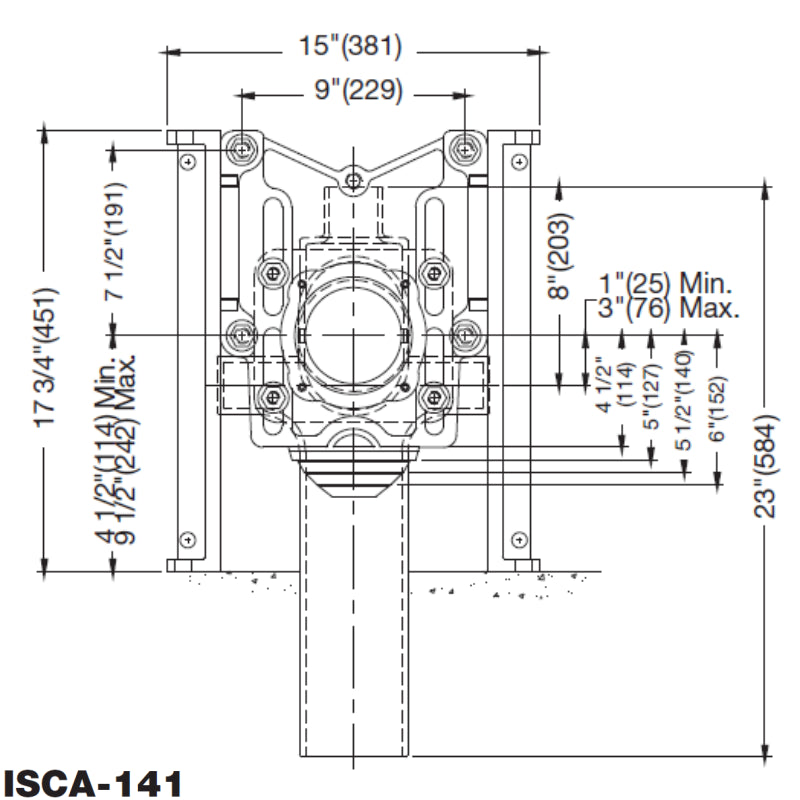

The Watts ISCA-141 is a reliable, industry-standard vertical water closet carrier, built with a durable epoxy-coated cast iron fitting and no-hub waste and vent connections (size to be specified). It features a patented compression seal faceplate and sturdy foot supports, both also epoxy-coated for long-lasting protection. The carrier is adjustable for both standard and wheelchair heights, with an ABS nipple that includes a test cap and neoprene bowl gasket for a secure fit. Plated hardware and chrome cap nuts provide a polished finish. This carrier is designed to handle up to 500 lbs (227 kg) of static load, meeting ASME A112.6.1M requirements.
ISCA-141-4-D Product Overview:

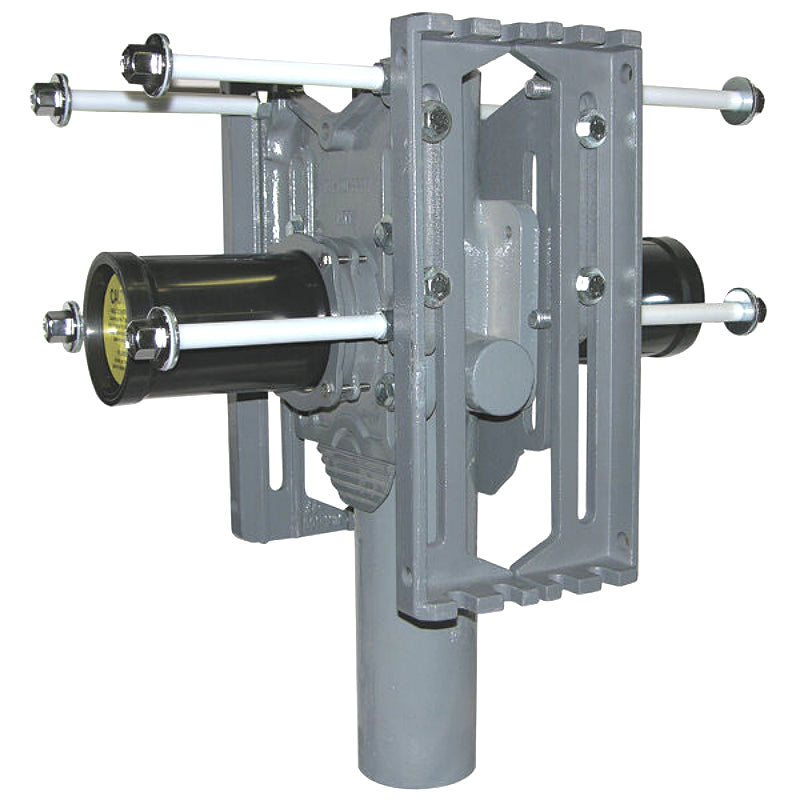

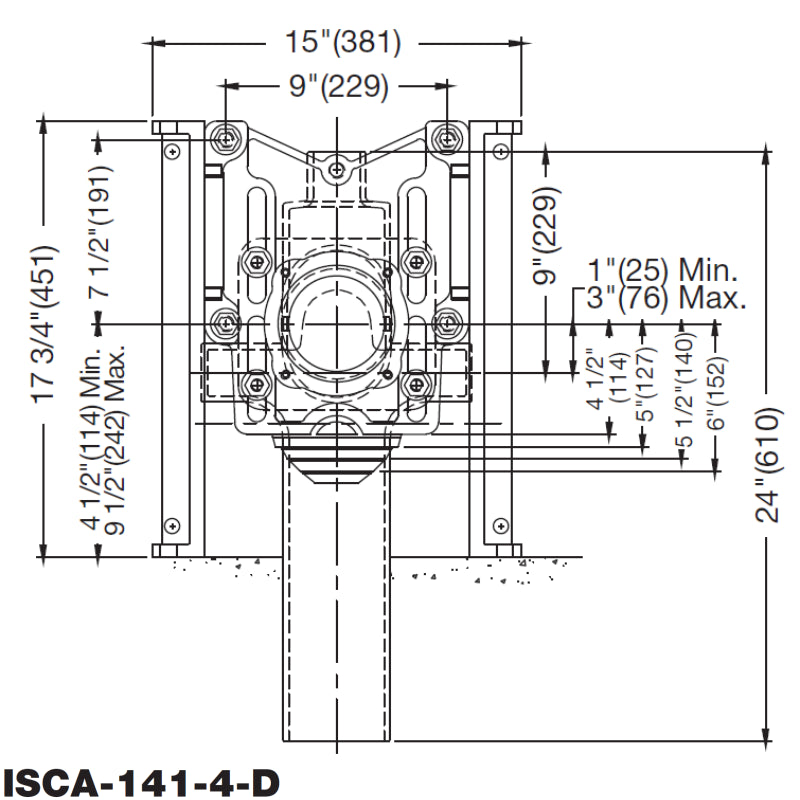

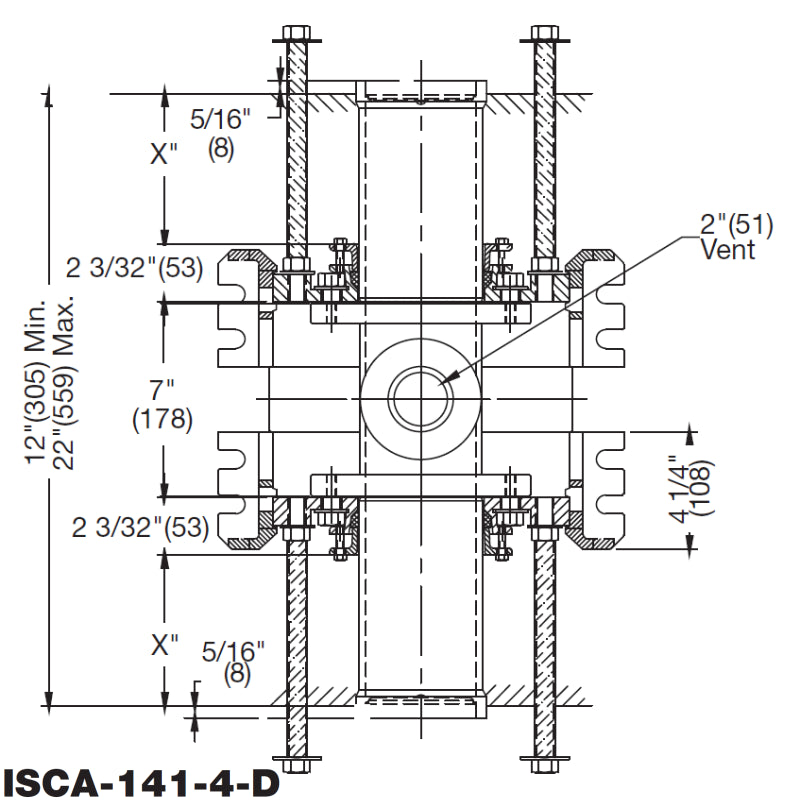

The Watts ISCA-141-4-D is a dependable, back-to-back vertical water closet carrier designed for thin wall installations. It features an epoxy-coated cast iron fitting, with a 4" no-hub waste connection and a 2" or 4" vent connection. The patented compression seal faceplate and foot supports are also epoxy-coated for extra durability and come with easy-to-read height markings. This carrier is adjustable for both standard and wheelchair heights, with an ABS nipple that includes an integral test cap and neoprene bowl gasket for a secure seal. The carrier includes plated hardware and chrome cap nuts for a sleek finish and meets ASME A112.6.1M standards, supporting up to 500 lbs (227 kg) of static load.
Technical Downloads:
