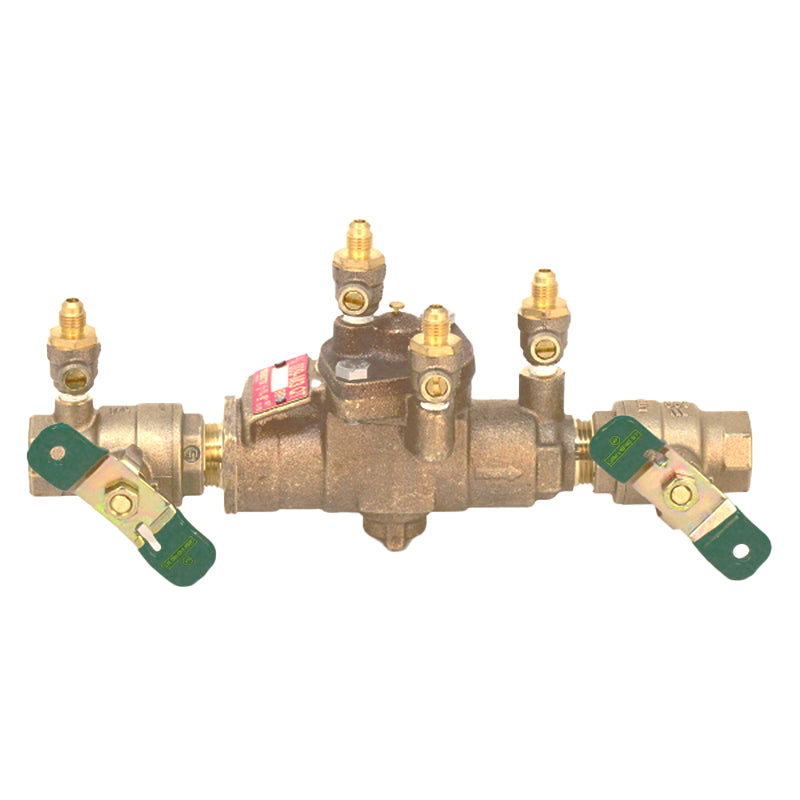

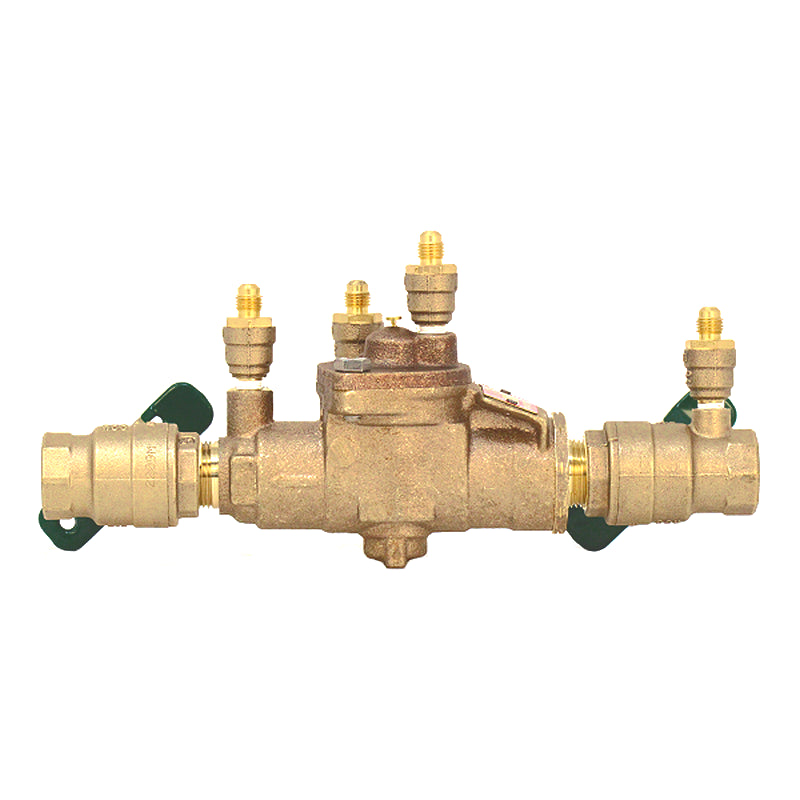

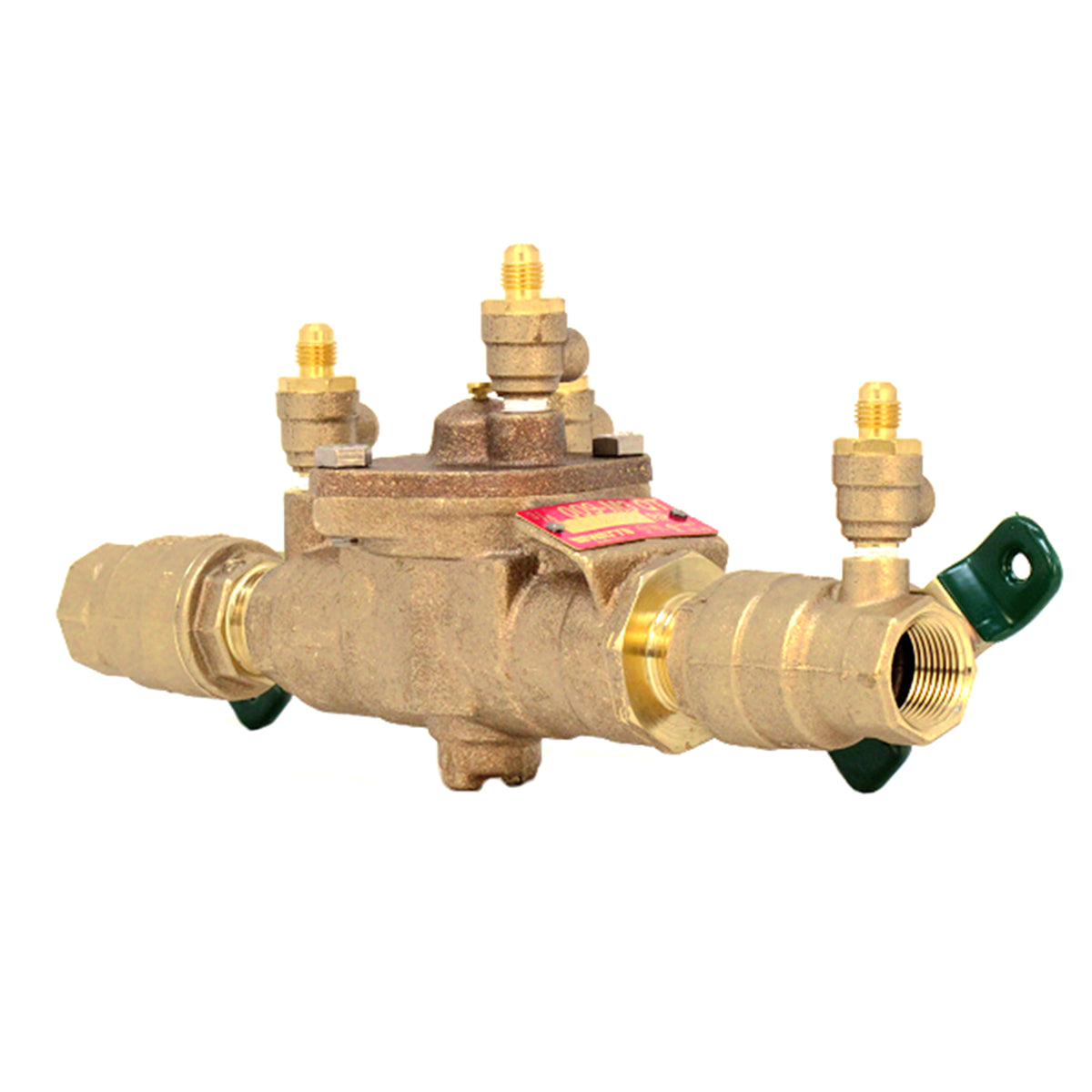

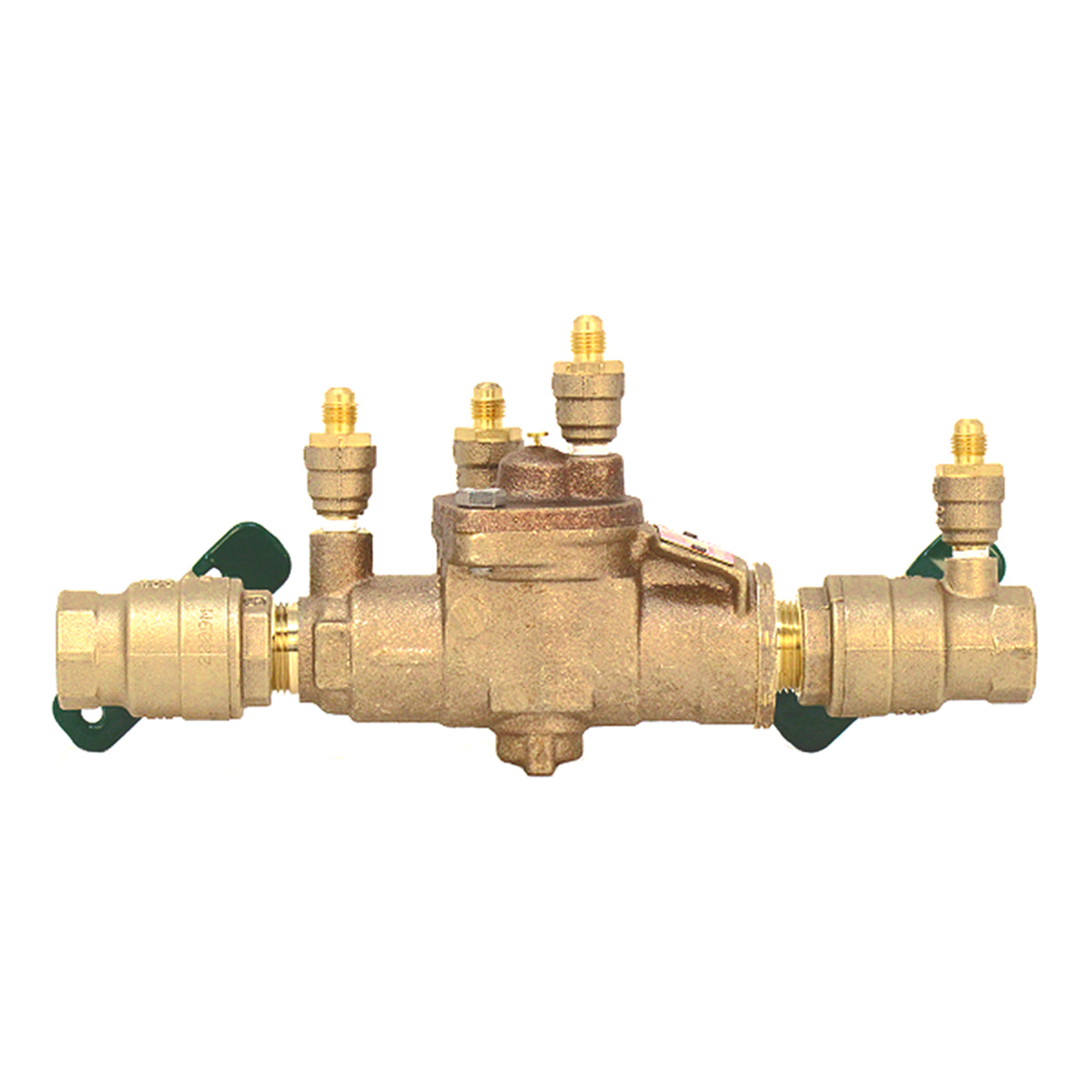

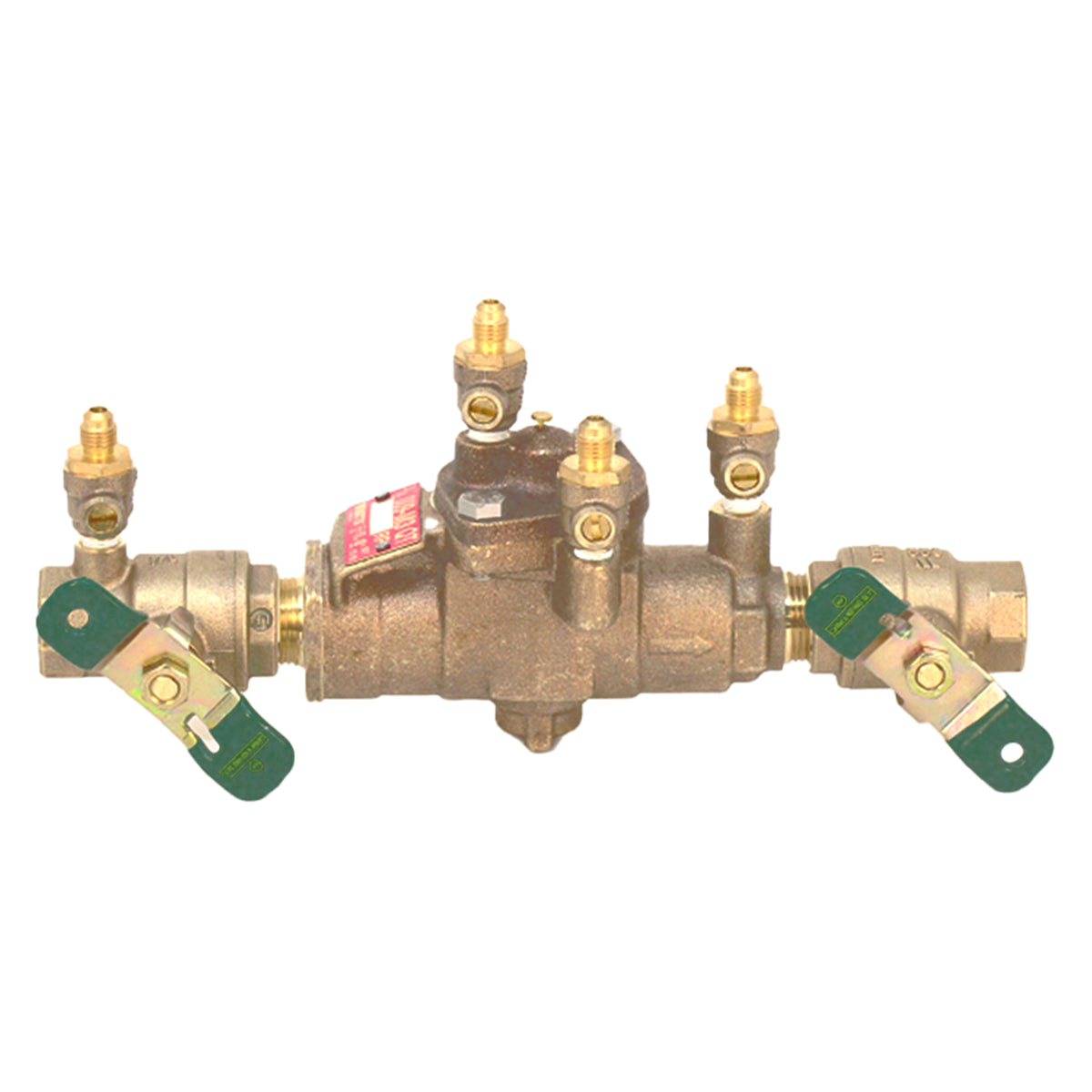

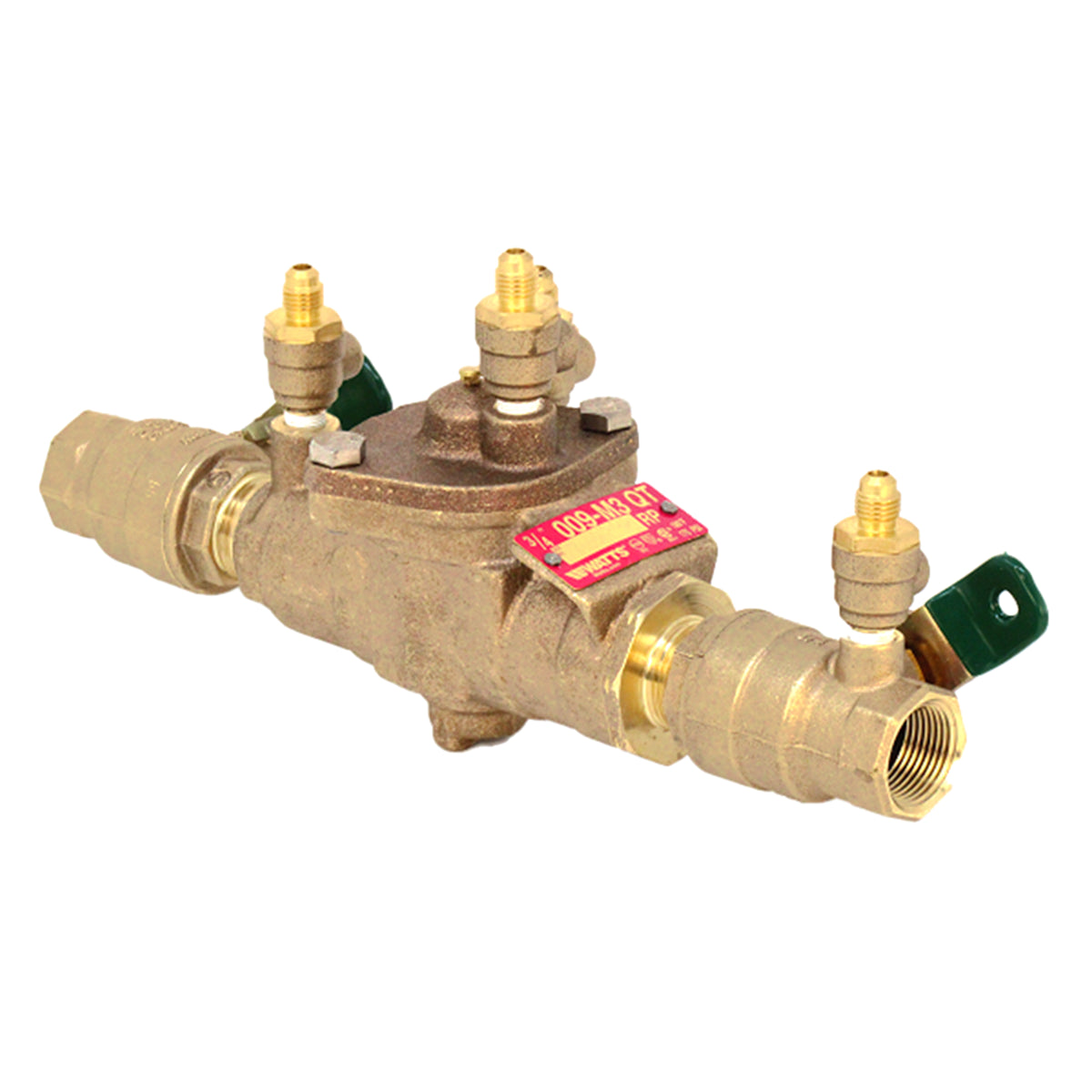

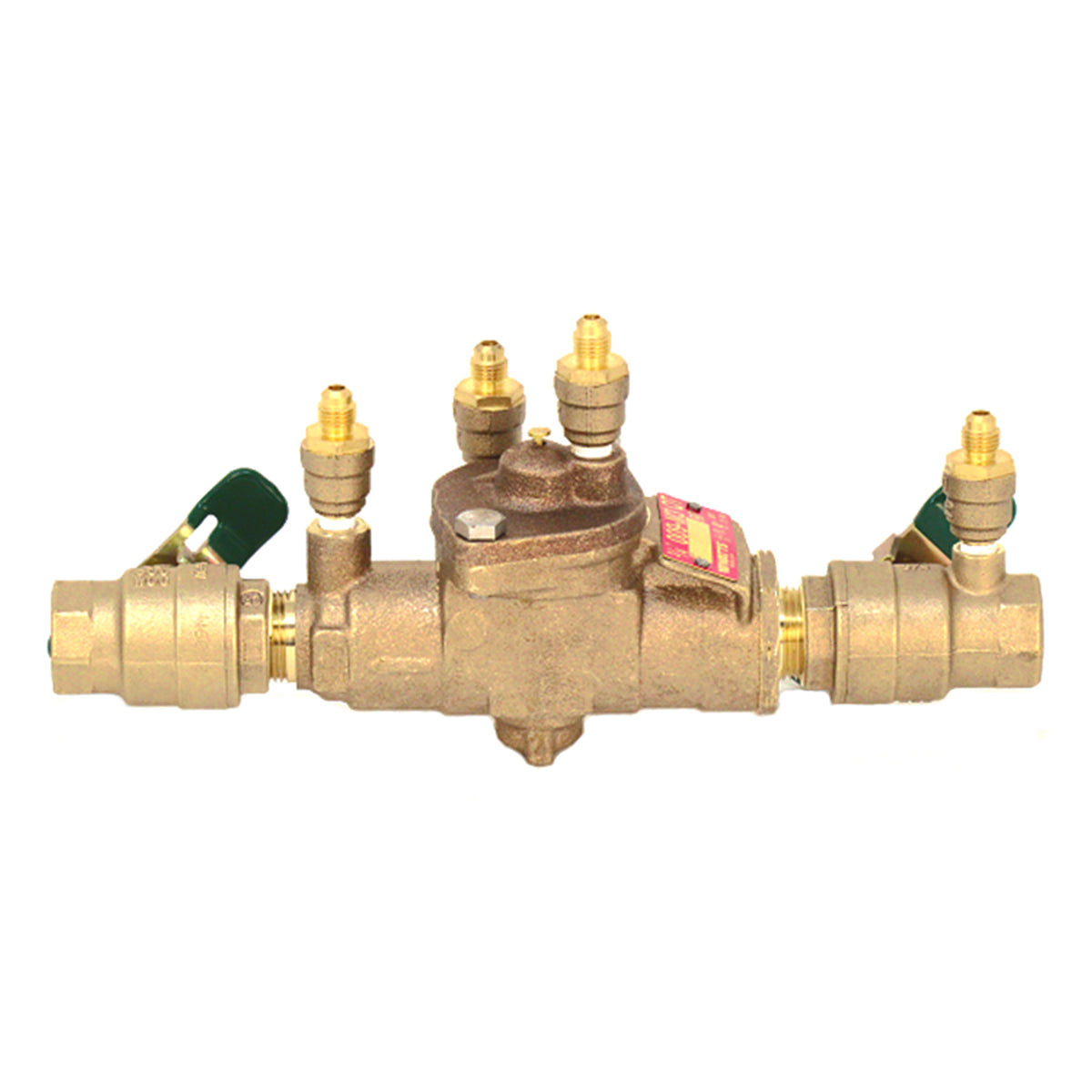

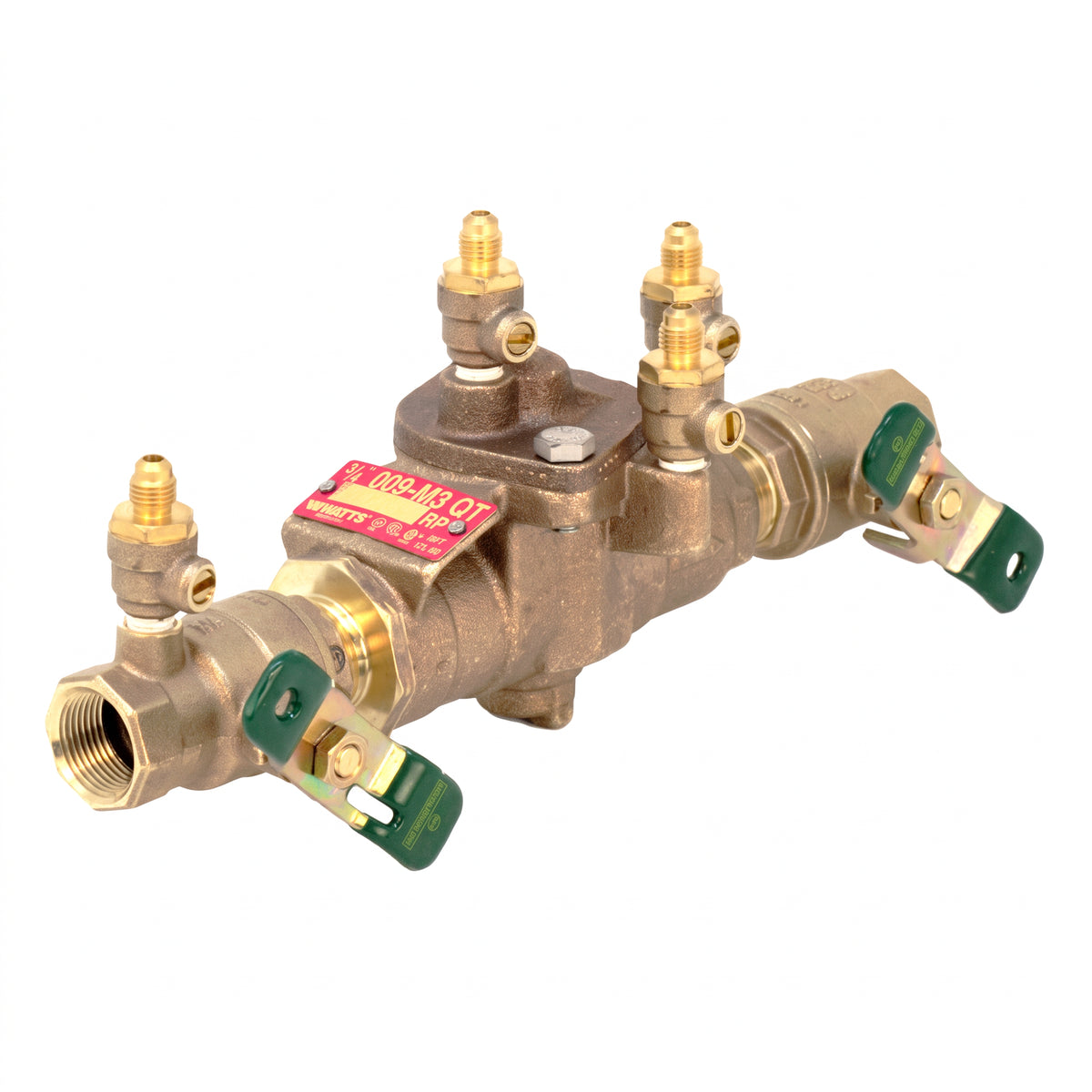

Watts 009M3‑QT-FS ¾″ Reduced Pressure Zone (RPZ) Backflow Preventer.
009M3-QT [0063030] / 009M3-QT-FS [88004058].
Product Description:
Engineered for critical water safety, the Watts 009M3‑QT-FS ¾″ RPZ Backflow Preventer safeguards your potable water supply from contaminated backflow—whether from backsiphonage or backpressure. Its compact, inline design meets national plumbing codes and water authority standards, making it ideal for commercial plumbing, irrigation and sprinkler systems, and industrial facilities.
This listing refers to the original 009M3‑QT model (Ordering Code: 0063030). When you order from this listing, you’ll receive the upgraded LF009M3‑QT-FS (Ordering Code: 88004058) lead-free replacement at no-extra charge, delivering reliable performance and approved parts continuity.
Key Features:
- Bronze body construction — highly durable and long-lasting in demanding environments
- Quarter-turn, full-port ball valve shutoffs with tee handles for swift operation
- Modular single‑access top cover — simplifies inline maintenance and check module replacement
- Two independent positive-seating check valves with captured springs & replaceable silicone seats—economical repairs
- Internal differential relief valve for low-clearance applications
- NPT female inlet/outlet, ¾″ size – standard in most commercial setups
Why You Should Buy:
| Benefit | Description |
|---|---|
| 🎯 Code-Compliant Safety | Meets all national plumbing codes—ideal for health-hazard cross-connections and service line protection. |
| 🧰 Low Lifecycle Cost | Internal modular design with replaceable parts means no need to uninstall the unit for service. |
| ⚙️ Field-Proven Performance | Trusted since 1998, designed for continuous pressure applications with minimal pressure drop. |
| 🚀 Seamless Upgrade Path | 009M3‑QT users receive the compatible, lead‑free LF009M3‑QT-FS successor. |
Applications:
Ideal for Use In:
- Commercial plumbing systems
- Irrigation and sprinkler systems
- Industrial facilities & boiler feed lines
- Service line entrances with cross-connection concerns
Deliver safe, compliant installations—whether new build or retrofit projects.
Installation Tips:
1. Choose the Right Location
Install the backflow preventer in a horizontal position, ideally close to the water service entry point. Ensure it’s installed above ground and never in a location subject to freezing.
2. Provide Proper Clearance
Allow enough space around the unit for testing, maintenance, and repairs. Minimum clearance should be maintained above and around the assembly for tool access and drainage.
3. Use Approved Drainage
Since the relief valve may discharge water, connect an approved air gap drain fitting to direct any discharge safely away. This helps prevent flooding and meets plumbing code requirements.
4. Confirm Flow Direction
Install with flow direction matching the arrows marked on the valve body. Misalignment can compromise system safety and void compliance.
5. Test After Installation
After installation, perform a backflow test using the top-mounted test cocks. Professional testing ensures the assembly meets local backflow prevention codes and confirms functional integrity.
6. Check for Freeze Protection
If installing outdoors, protect the unit with an insulated WattsBox enclosure to prevent damage from freezing temperatures.
7. Secure Mounting
Use proper bracketing or supports for piping to reduce strain on the assembly and avoid misalignment during operation.
8. Don’t Skip Permits
Always check with your local water authority and building codes. Some jurisdictions require permits and certified professional installation for backflow preventers.
✅ FAQ
1. Is the 009M3‑QT still available?
It has been discontinued. However, when ordered, you'll receive the LF009M3‑QT-FS (lead‑free replacement) with full component compatibility.
2. What’s included with the valve?
Included: bronze body, top-entry cover, two quarter-turn shutoff valves, top-mounted test cocks, two check modules, relief valve, silicone seats.
3. Can I service it without removing it from the line?
Yes—the modular design allows inline servicing through a single access cover.
4. What’s the max temperature and pressure?
Rated up to 175 psi and 180 °F (82 °C), handling a range of commercial environments.
5. What maintenance parts are available?
Watts service kits include check module kits (e.g., RK 009M3‑CK1), total rubber kits, relief valve kits—ensuring long-term upkeep.
Product Notes:
Technical Downloads:
- Watts 009: Specification Submittal
- Watts 009: Installation and Maintenance Instructions
- Watts 009: Repair Kit Guide (1/4" to 1")
🛒 Ready to Upgrade Your Backflow Protection?
Don't miss out on one of the most trusted commercial RPZ backflow preventers on the market. Though the Watts 009M3‑QT is discontinued, you’ll receive its direct replacement—the LF009M3‑QT-FS, delivering the same legendary performance with modern enhancements.
Ideal for irrigation systems, sprinkler lines, and industrial plumbing applications, this ¾″ reduced pressure zone backflow preventer meets national standards and provides reliable defense against contaminants entering your potable water supply.
✅ Shop now for a Watts 009 RPZ valve and ensure your system remains code-compliant, efficient, and protected.
