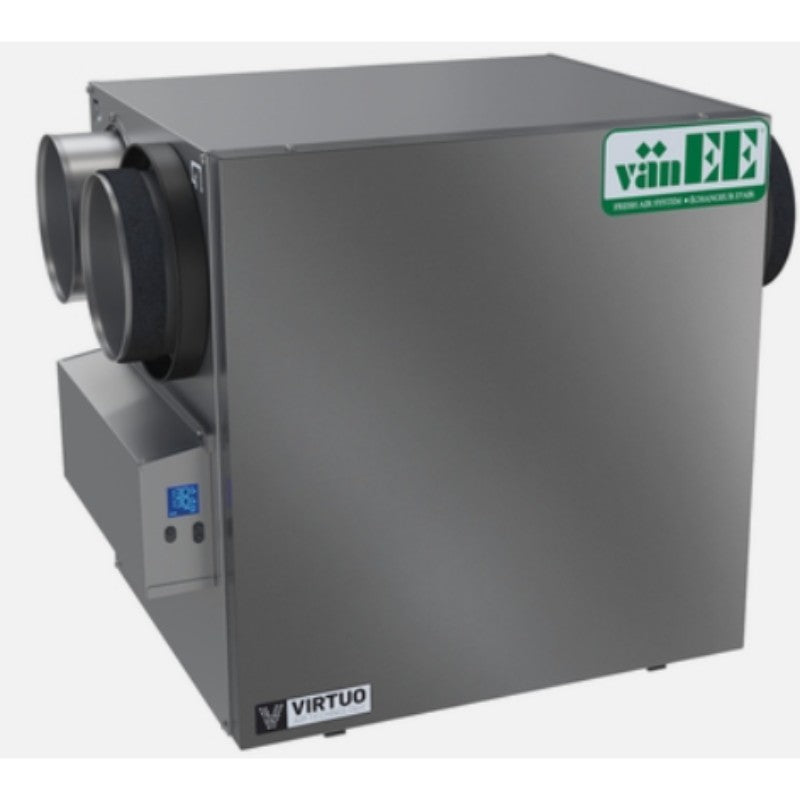

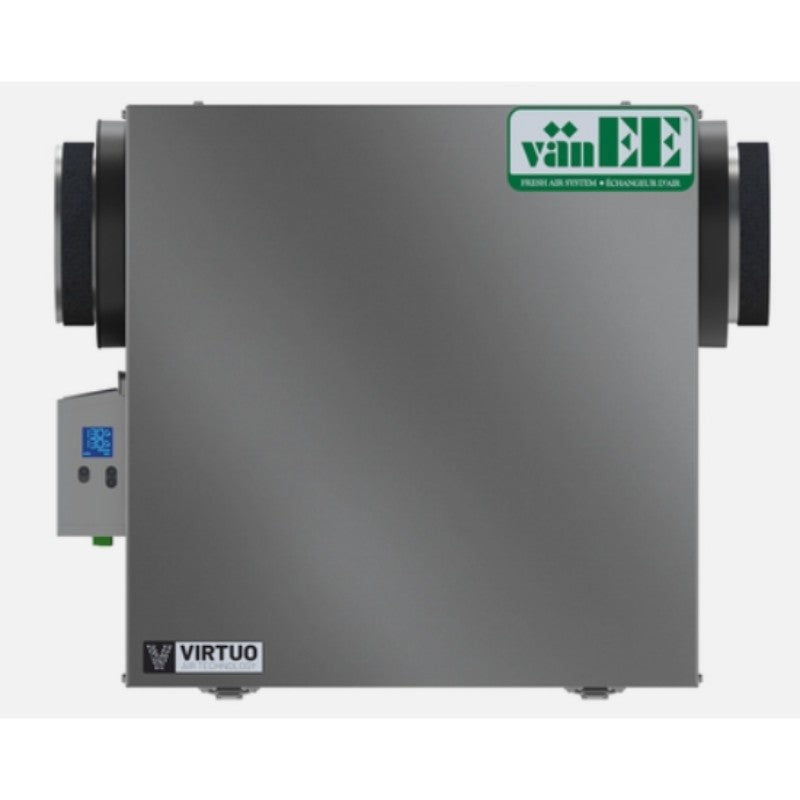

Vanee V130H65RS HRV 130CFM, Side Ports

Side PortsProduct Overview:

Introducing the industry’s most advanced residential air exchanger, created to offer you much more than a standard Heat Recovery Ventilator (HRV) or Energy Recovery Ventilator (ERV). The AI Series features a universal platform that works with every conceivable type of dwelling, simplifying the installation while delivering superior air quality and comes standard with Virtuo Air Technology.

VIRTUO AIR TECHNOLOGY

Introducing Virtuo Air Technology^TM, the first air exchanger artificial intelligence that allows the airflow verification, the auto-balancing and self-adjusting to changing indoor and outdoor conditions.

With Virtuo, you can rely on a smart algorithm to ensure optimal indoor air quality. When a pressure change occurs, Virtuo detects it and instantly adjusts the air exchanger’s operation to consistently deliver the proper amount of fresh air with minimal energy consumption. Staying 100% balanced. Always!

HIGH STANDARD DESIGN

The AI Series is equipped with ECM PMSM motors, the most efficient & reliable motor on the market. It comes with standard MERV 8 filtration or optional MERV 13 filtration. It Includes the new universal brackets and chains for a flexible and faster installation.

• Up to 110 CFM at 0,2 in.w.g
• Sensible Recovery Efficiency up to 65% at 0ºC
• 5 inches ports
• Recirculation mode
• Top and Side ports available

Specifications:

• Recovery type - HRV
• Exchange rate (CFM) - 130
• Position of ports - Top
• Port diameter - Round, top or side, 5 in.
• Comptability of Wall Controls - Advanced Touchsreen Control (41303),
• Controls are sold separately
• Filter - MERV 8 (included), optional MERV 13 (V24285)
• Warranty on parts (years) - 5
• Warranty on core or thermal wheel (years) - Limited lifetime
• ENERGY STAR © qualified - No
• HVI Certified - Yes

 Technical Documentation:

Vanee V130H65RS Specification Sheet

Vanee V130H65RS User and Installation Manual

Vanee V130H65RS Product Brochure
