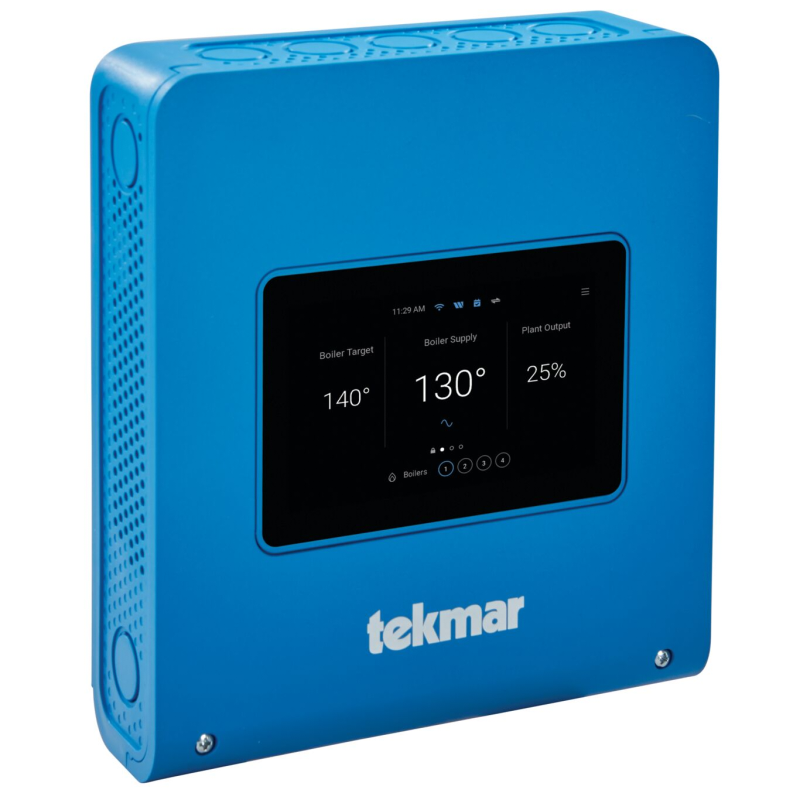

Tekmar 294 Smart Boiler Control

Product Overview:

The Smart Boiler Control 294 provides central and indirect domestic hot water heating or volume domestic hot water heating by operating up to four boilers. This can be expanded in groups of four boilers through the use of expansion controls up to a maximum of sixteen boilers. The 294 operates both condensing and non-condensing boilers that are either modulating, single, two, three or four-stage to provide a flexible, cost effective hybrid boiler plant solution. The Watts OnSite web and mobile applications provide real-time remote monitoring, setting adjustments, and notifications.

Features:

• Remote access using Watts® OnSite web/mobile app and notifications through email, SMS or push messages
• Operates 4 boilers, expandable up to 16 using expansion controls
• Sequential or parallel staging for condensing and non-condensing boiler groups
• Central heating using outdoor reset, indirect DHW, dedicated DHW, setpoint and tekmarNet calls
• Supports reverse return, primary-secondary and variable primary flow piping systems
• 5 inch color touchscreen with Setup Wizard for simplified installation

Technical Downloads:

• Tekmar 294: Application Brochure - Smart Boiler Control 294
• Tekmar 294: Catalog - tekmar Controls
• Tekmar 294: Flyer - Smart Boiler Control 294
• Tekmar 294: Installation Instructions - Smart Boiler Control 294
• Tekmar 294: Installation Instructions - Watts OnSite
• Tekmar 294: Job Record - Smart Boiler Control 294
• Tekmar 294: Specification Sheet - Smart Boiler Control 294
