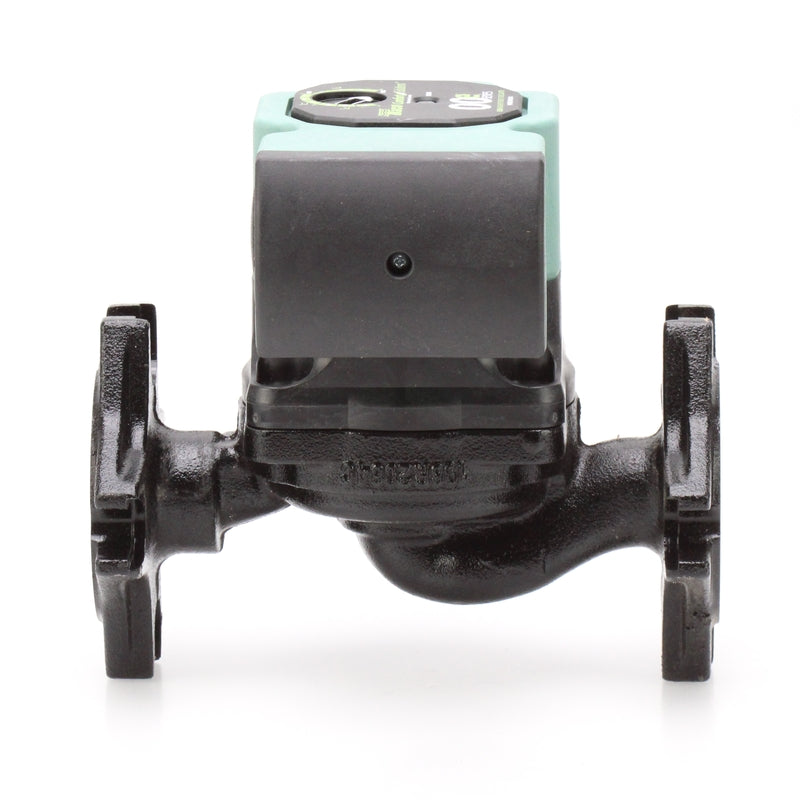

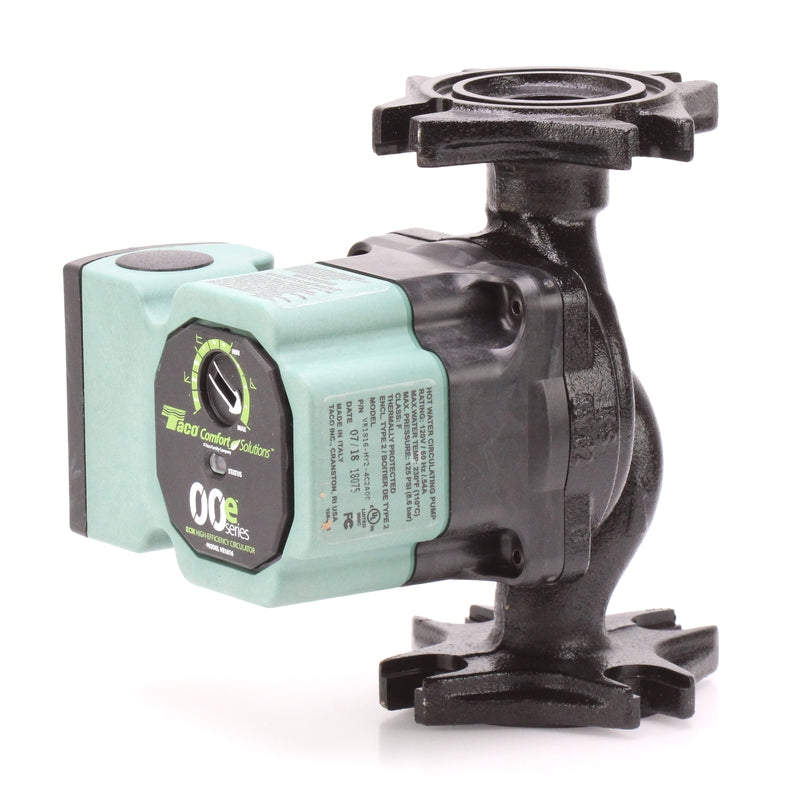

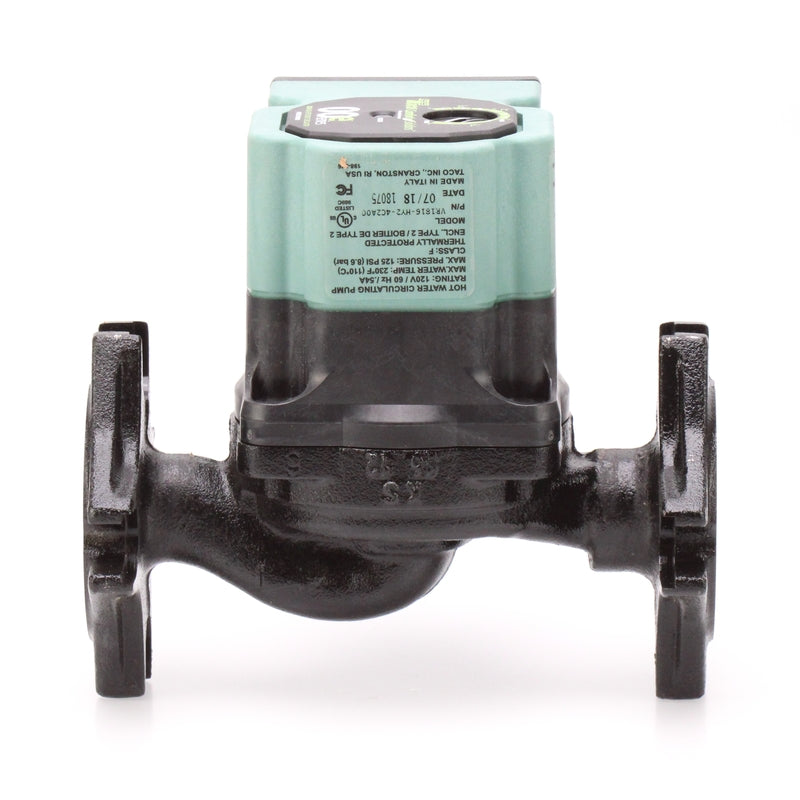

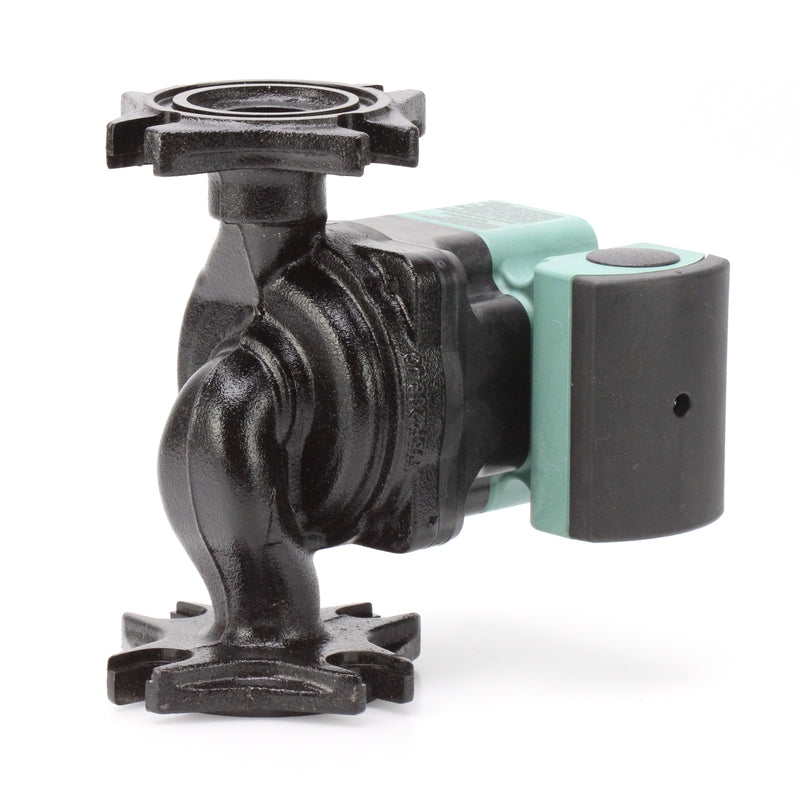

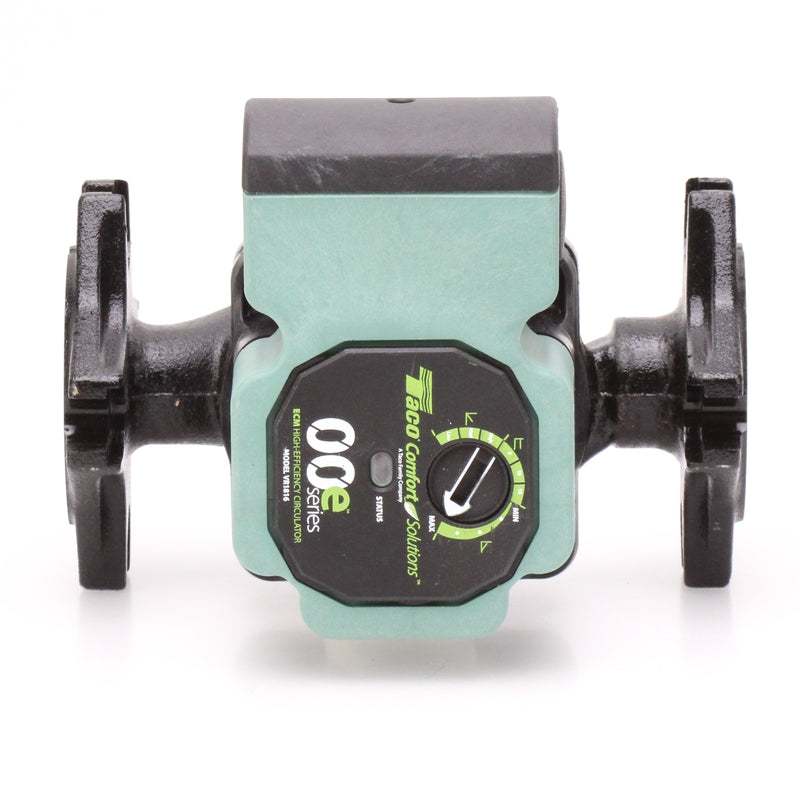

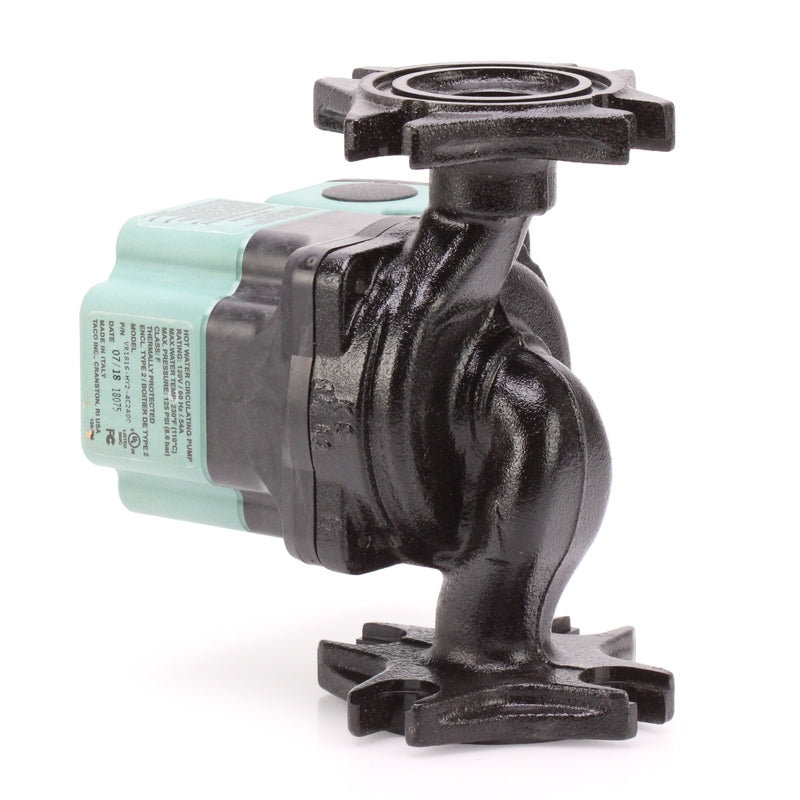

Taco 0018E-2F4 ECM Cast Iron High-Efficiency Circulator Pump


Price:
Sale price$302.99
Stock:

Questions? Call for Help at 1-844-597-3070

Description

Taco 0018E-2F4 ECM Cast Iron High-Efficiency Circulator Pump

Taco 0018E-2F4 ECM Cast Iron High-Efficiency Circulator Pump

Features:

The 00e® series - 0018e featuring Bluetooth is a versatile, variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Download the Taco 0018e Mobile App to see and control real-time system performance. Run system operation & validation reports including performance diagnostics & history. Know the most efficient setting based on real-time feedback and alleviate the problems of over-pumping. You design systems with precision. The 0018e offers the performance & control to match.

  • Bluetooth® wireless communication for read & write functionality
  • Intuitive 0018e ECM Circulator Mobile App for iOS and Android
  • 4 Operating modes to choose from;
    • Min./Max. fixed speed
    • Constant pressure
    • Proportional pressure
  • activeADAPT – self-adjusting proportional pressure
  • BIO Barrier® protects the pump from system contaminants
  • SureStart®, a Taco exclusive feature, is your no-callback safety net. It automatically purges air and unblocks the pump to keep it trouble-free.
  • High-efficiency ECM technology uses up to 85% less electricity
  • Dual electrical knockouts and 6″ stranded wire leads for easy wiring
  • Double insulated; no ground wire needed
  • Whisper quiet operation

Specifications:

  • Maximum Shut-off Head - 18 feet
  • Maximum Flow - 16 gpm
  • Maximum Operating Pressure - 125 psi (8.6 bar)
  • Maximum Water Temp: 230°F (110°C)
  • Minimum Water Temp: 36°F (2°C)
  • Electrical specifications:
    • Voltage: 120V, 60 Hz Single phase
    • Operating Power: 4W - 44W
    • Max. AMP Rating: 0.54
  • Equipped with a cast iron casing and should be used for closed loop systems only
  • Not suitable for chilled water or open loop potable water systems
  • Taco circulator pumps are for indoor use only
  • Acceptable for use with water or maximum of 50% water/glycol solution

Materials of Construction:

  • Casing - Cast Iron
  • Stator Housing - Composite
  • Cartridge - Composite
  • Impeller - Composite
  • Shaft - Ceramic
  • Bearings - Carbon
  • Thrust Bearing - Ceramic
  • O-Ring & Gaskets - EPDM
  • Integral Flow Check (IFC® ):
    • Body, Plunger - Acetal
    • O-ring Seal - EPDM
    • Spring - Stainless Steel

Catalog

Instruction Sheet

Submittal Data Sheet
