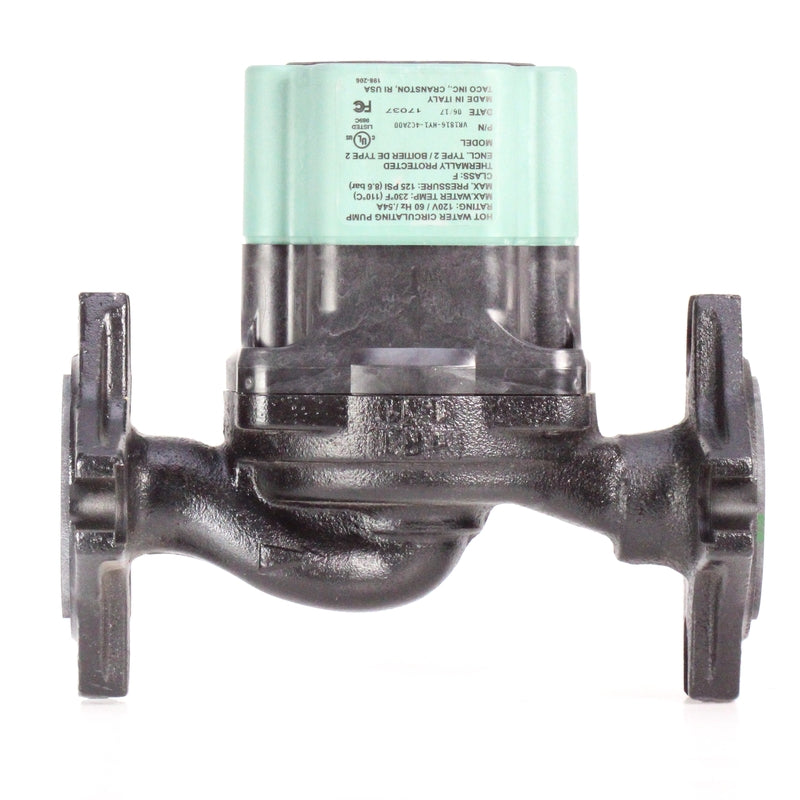

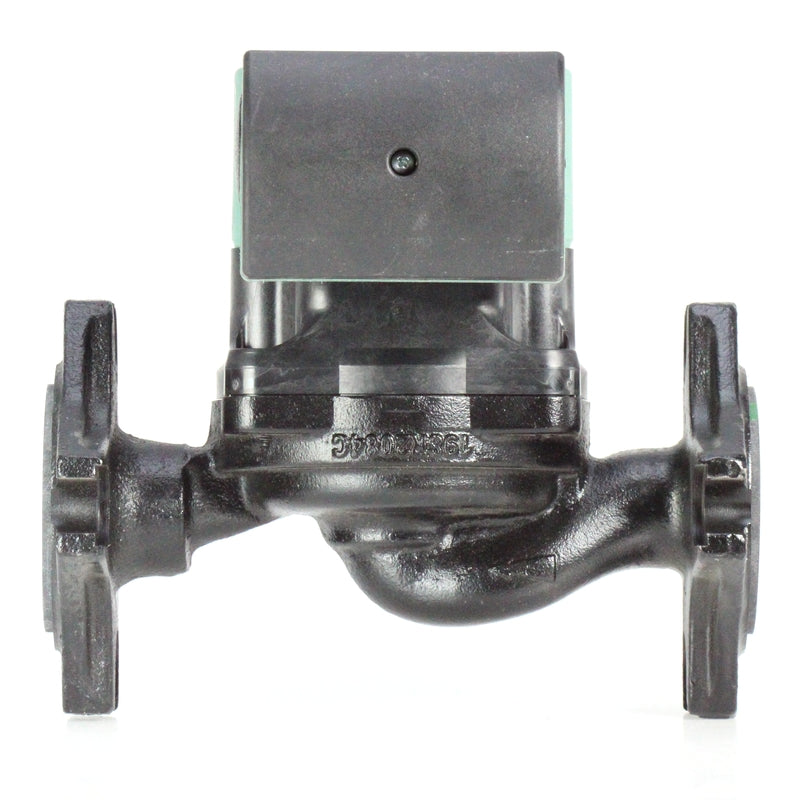

Taco 0015E3-2F4 ECM Cast Iron High-Efficiency Circulator Pump


Price:
Sale price$215.99
Stock:

Questions? Call for Help at 1-844-597-3070

Description

Taco 0015E3-2F4 ECM Cast Iron High-Efficiency Circulator Pump

Taco 0015E3-2F4 ECM Cast Iron High-Efficiency Circulator Pump

Features:

The 00e® series — VR1816 circulator is an infinitely variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Operating modes include infinitely variable fixed speed and self-adjusting constant pressure or proportional pressure variable speed

  • High-efficiency ECM motor uses up to 85% less electricity
  • Infinitely variable speed settings to fine tune flow for any system
  • SureStart®, a Taco exclusive feature, is your no-callback safety net. It automatically purges air and unblocks the pump to keep it trouble-free.
  • BIO Barrier® filter protects pump from system contaminants
  • Easy to use dial to set operating speed or pressure control
  • Operates in 3 Different Modes:
    • Infinitely Variable Fixed Speed
    • Constant Pressure
    • Self-adjusting, Variable Speed
    • Proportional Pressure — Self-adjusting, Variable Speed
  • 5 color LED displays:
    • Operating mode (Blue, Orange or Green)
    • Error code diagnostics (Red or White)
  • Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
  • Dual electrical knock-outs
  • 6″ stranded wire leads for easy wiring
  • Double Insulated. No ground necessary.
  • Integral Flow Check (IFC®) included
  • Whisper quiet operation
  • Optional 2-way flange reduces SKU’s and provides universal fit-up to any flange position

Specifications:

  • Maximum Shut-off Head - 18 feet
  • Maximum Flow - 16 gpm
  • Maximum Operating Pressure - 125 psi (8.6 bar)
  • Maximum Water Temp: 230°F (110°C)
  • Minimum Water Temp: 36°F (2°C)
  • Electrical specifications:
    • Voltage: 120V, 60 Hz Single phase
    • Operating Power: 4W - 44W
    • Max. AMP Rating: 0.54
  • Equipped with a cast iron casing and should be used for closed loop systems only
  • Not suitable for chilled water or open loop potable water systems
  • Taco circulator pumps are for indoor use only
  • Acceptable for use with water or maximum of 50% water/glycol solution

Materials of Construction:

  • Casing - Cast Iron
  • Stator Housing - Composite
  • Cartridge - Composite
  • Impeller - Composite
  • Shaft - Ceramic
  • Bearings - Carbon
  • Thrust Bearing - Ceramic
  • O-Ring & Gaskets - EPDM
  • Integral Flow Check (IFC® ):
    • Body, Plunger - Acetal
    • O-ring Seal - EPDM
    • Spring - Stainless Steel

Catalog

Instruction Sheet

Submittal Data Sheet
