Sterling HS048 Horizontal Hydronic Unit Heater, 48,000 BTU/Hr.

SterlingSKU: MES-HSB048

Price:
Sale Price$1,825.99 USD
Description
Sterling HS048 Horizontal Hydronic Unit Heater, 34,800 BTU/Hr.

Sterling® HS048 Horizontal Hydronic Unit Heater, 48,000 BTU/Hr. Output, Steam or Water Applications.

Features & Benefits:

  • Approved for steam or water applications.
  • Wall or ceiling mountable.
  • Coil style header.
  • Residential or commercial applications.
  • 20-gauge die-formed steel casing.
  • Lead-free, chromate free, electrostatically applied paint finish.

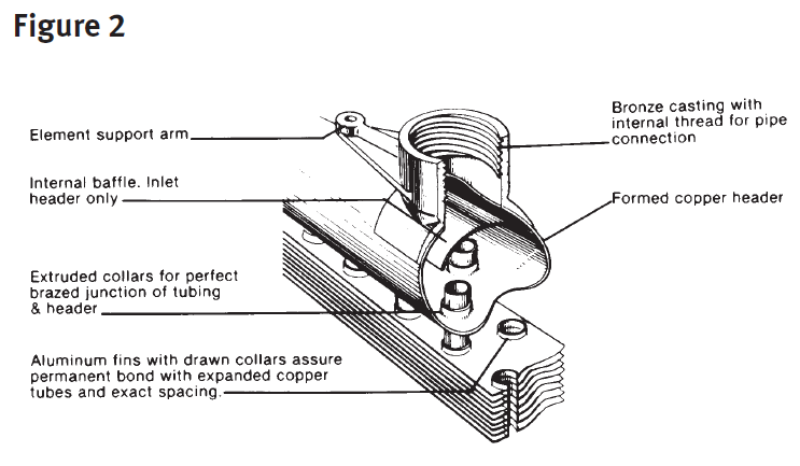

  • Heavy drawn seamless copper tubing elements and headers.
  • Cast bronze pipe connection saddles.
  • Aluminum fins.
  • All units are factory tested.
  • Multiple motor types available: open-drip, totally enclosed, explosion proof.
  • Multiple supply voltages available.
  • Fan blades are factory balanced aluminum hub type.
  • Spark-proof blades.
  • Quiet operation.

Technical Details:

Product Specification
BRAND Sterling®
MANUFACTURER MODEL NUMBER HSB048
TYPE Horizontal Hydronic
OUTPUT (BTU/Hr) 2 LB STEAM 60°F ENTERING AIR 48,000
OUTPUT (BTU/Hr) HOT WATER 200°F IN 60°F ENTERING AIR 34,800

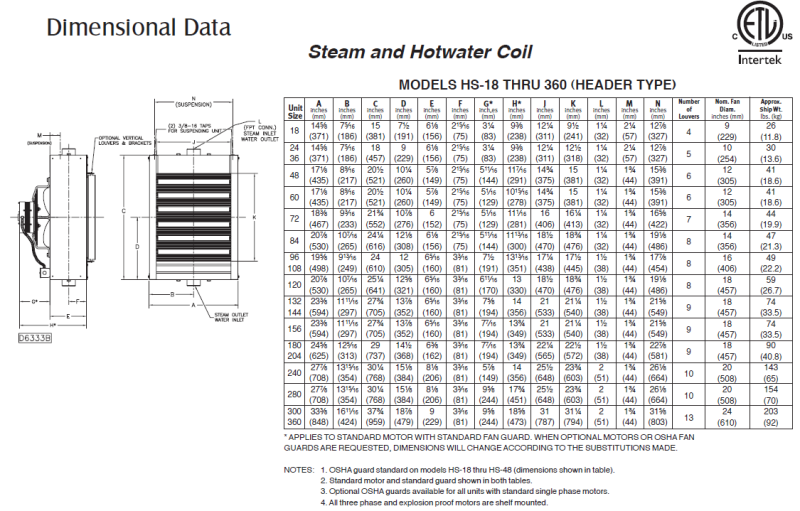

LENGTH INCHES 17-1/8"
WIDTH INCHES 11-7/16"
HEIGHT INCHES 20-1/2"
WEIGHT Lbs. 41 Lbs.

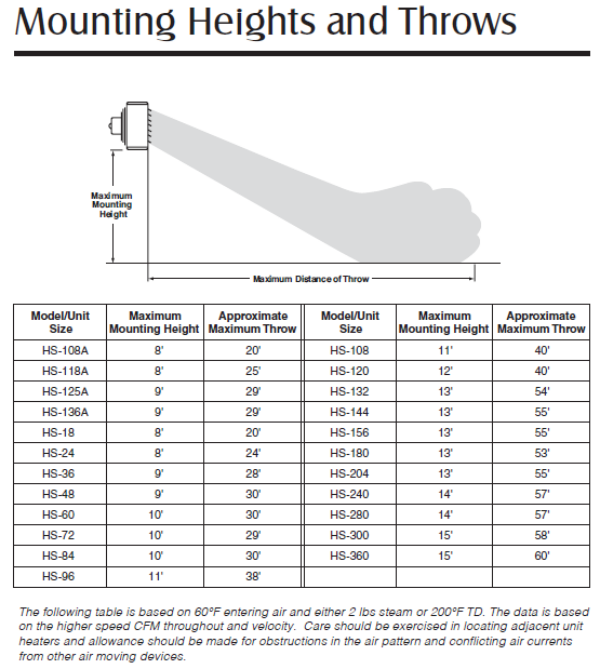

MAXIMUM MOUNTING HEIGHT (FEET) 9'
HEAT THROW FEET 30'
CFM (HIGH) 750
RPM (HIGH) 1000
VOLTAGE VARIES
PHASE VARIES
WATER FLOW (GPM) 3.5
AMPS (High Speed) 1.4
PRESSURE DROP FT./H20 0.12
FAN DIAMETER INCHES 12"
OUTLET VELOCITY FPM 550
FINAL AIR TEMPERATURE °F (HOT WATER) 103° F - 111° F
FINAL AIR TEMPERATURE °F (STEAM) 119° - 123° F
COLOR Grey
ASSEMBLY Assembled
CONSTRUCTION Steel
APPROVALS ETL, ETLc
LIMITED WARRANTY (YEARS) 1


Technical Documentation:
