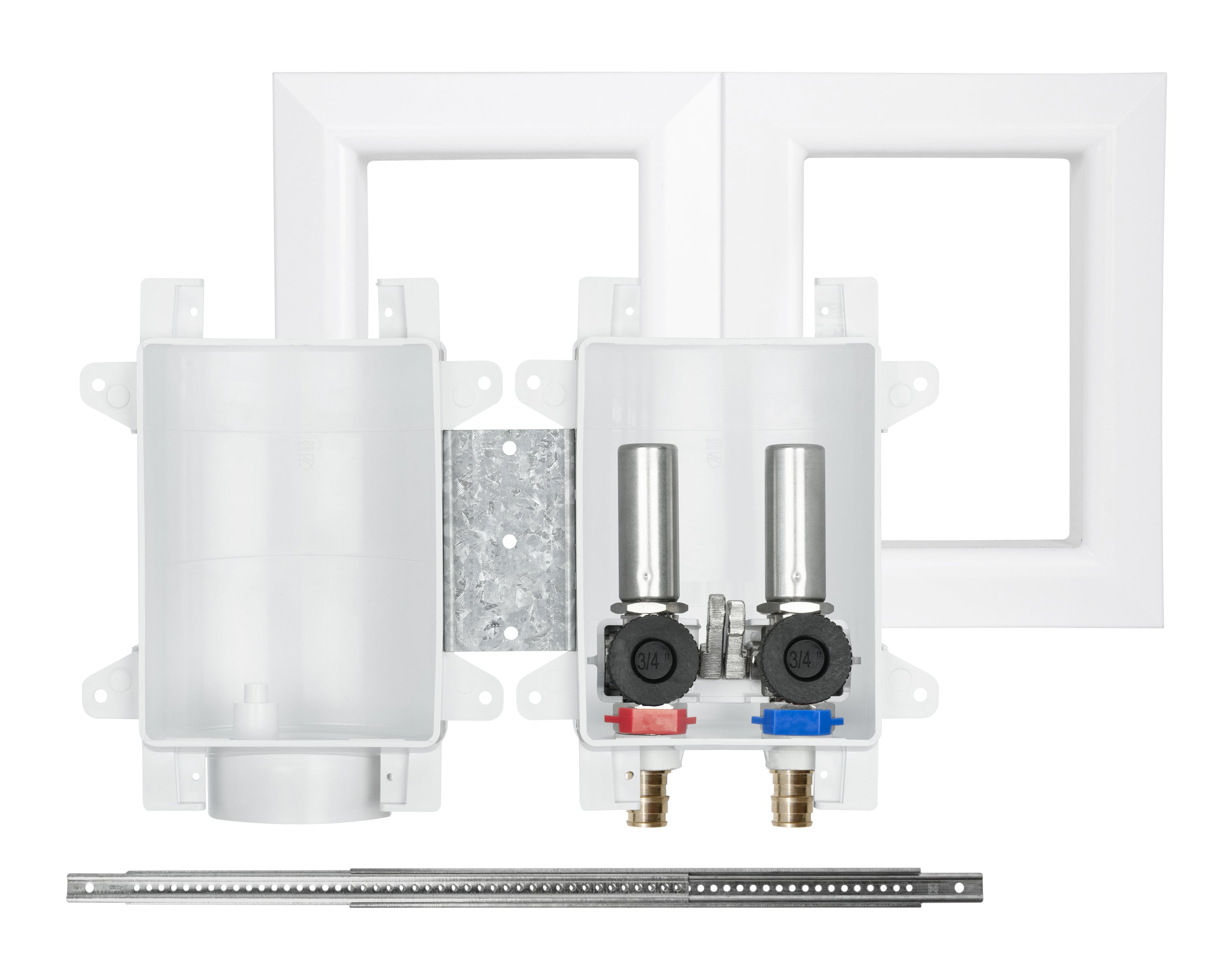

Sioux Chief 696-2313WF OxBox™ Washing Machine Outlet Box with MiniRester™ Water Hammer Arresters, ½" PEX F1960 Connection.
Features & Benefits:
- Boxes mount securely to stud or over studs
- Separates supply and drainage systems into two stud bays
- Separate boxes offer flexible layout
- Durable ABS stands up to job site abuse
- Drain knockout is easy to remove with pliers
- With two MiniRester water hammer arresters
- Debris covers included to protect boxes from drywall mud and paint
- High-quality quarter-turn ball valves
- ¾" male hose-thread outlet connections
Product Specification:
Sioux Chief 696 series OxBox™ outlet box shall be used where necessary in plumbing supply/drainage systems. Unit shall allow for mounting with supply lines from top or bottom, on-stud or between-studs. Supply and drain boxes can be connected using provided galvanized U-Clip or separated as desired. Supply box can be inverted. Arrester variations can be installed with arresters at any angle. Unit shall be available with ¼-turn valves. Metal support bracket shall install into top/bottom tracks of box. Drain box shall have a ⅝" integral testable nipple on knockout. Outlet connections shall be generally ¾". Outlet connections should generally be provided with a test/tamper-resistant cap. Valves should be plated. Arrester option handles can be operated together (single throw) or independently.
Materials:
- Valve Body: forged brass
- Valve Shank: brass/copper/PPSU/CPVC, 304SS grip ring, Brass nut, Silicone seal
- Outlet Boxes/Frame/Arrester Clip: ABS
- Arrester Body: stainless steel, C69300 NL brass
- Arrester Piston: GFPP with EPDM o-rings
- Bracket/Box Clip: galvanized steel
Technical Downloads:
- Sioux Chief 696-2313WF: Specification Submittal
- Sioux Chief 696-2313WF: Installation Instructions
- Sioux Chief 696-2313WF: Brochure
Media:
Sioux Chief Products - OxBox:
Sioux Chief Products - MiniRester:
Sioux Chief Products - OxBox Animation:
