Phoenix UD8801 Commercial Evaporative Cooler, Down Discharge, Aspen Media, Blower Style, UL Listed

Phoenix ManufacturingSKU: PHO-UD8801

Price:
Sale Price$3,445.00 USD
Stock:
Contact for Availability
Description

Phoenix UD8801 Commercial Evaporative Cooler, Down Discharge, Aspen Media, Blower Style, UL Listed.

Performance Overview:Phoenix UD8801 Commercial Evaporative Cooler, Down Discharge, Aspen Media, Blower Style, UL Listed

Product Overview:

  • Environmentally Friendly:
    • The simple concept of mixing air and water produces powerful, energy efficient cooling that is both economical and environmentally friendly. The Frigiking coolers are ideally suited for the rigorous demands of commercial / industrial applications such as those found in warehouses, plants and factories.

Features & Benefits:

  • Units are UL Listed to UL Standard 507.
  • High quality architectural grade Peblar XT® finish.
  • Galvanized sheet steel is zinc coated at weights rated G40 or G90.
  • Up to 22,000 CFM capacity (Industry Standard Rating).
  • Evaporative media used in the UL Listed models is rated to UL900.
  • Three Phase EISA motors are NEMA MG-1 Table 12-12 compliant.
  • Belt and bleed off included.
  • Bearings have an L10 bearing life of 39,000 hours.
  • Solid shaft for strength & durability.
  • Heavy duty UL Recognized motor & pump available.
  • Multilayer bottom pan finish.
  • Dynamically balanced blower wheels.
  • City of Los Angeles Approved.

Technical Details:

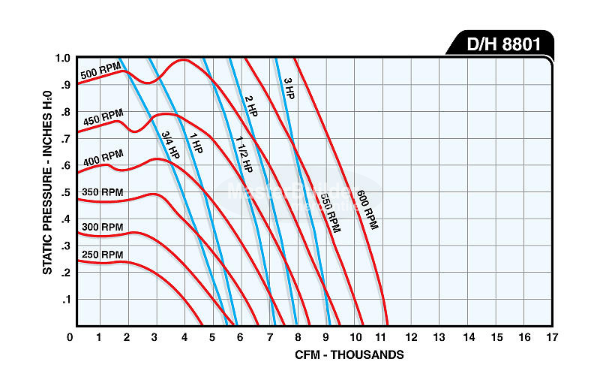

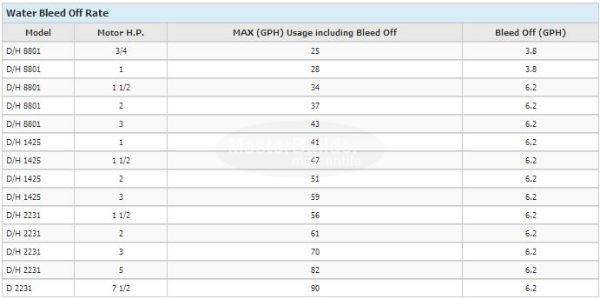

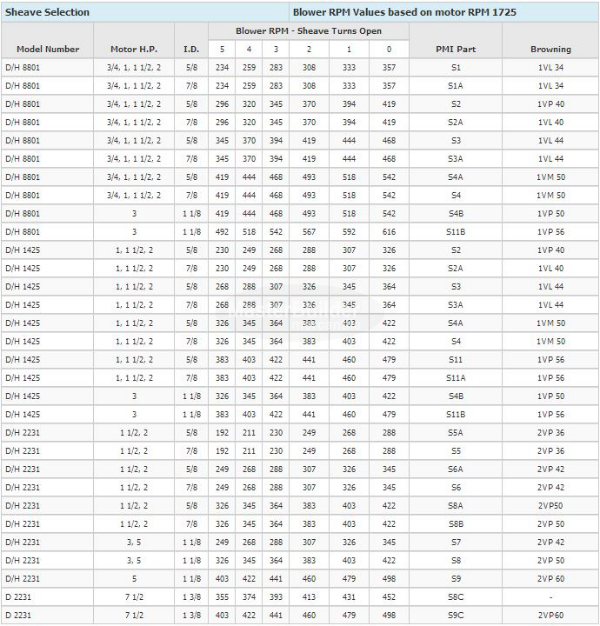

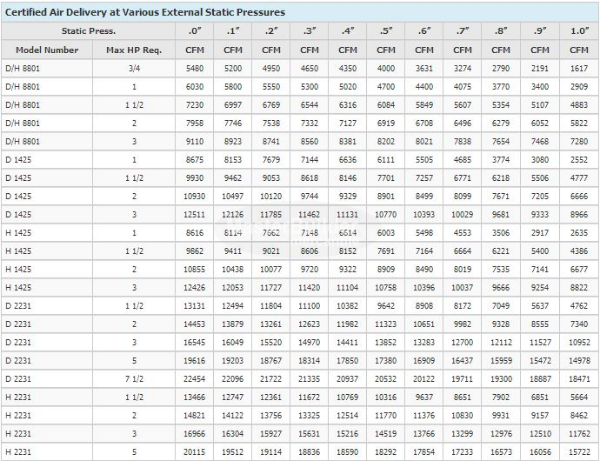

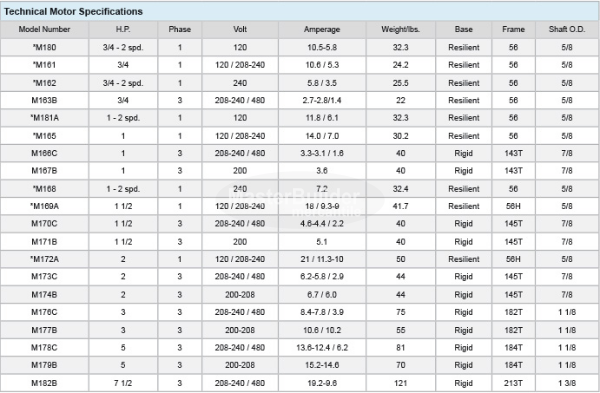

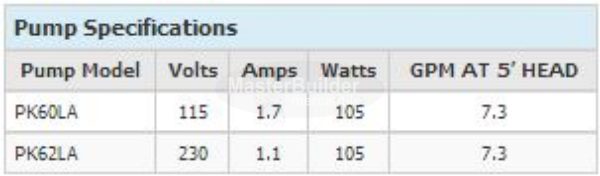

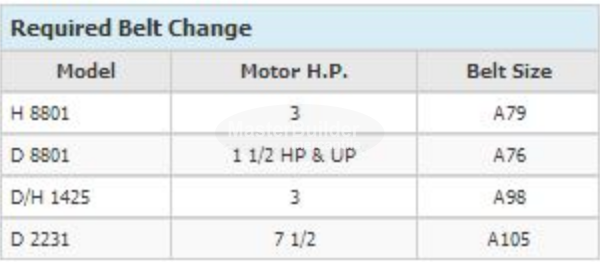

Phoenix UD8801 Commercial Evaporative Cooler, Down Discharge, Aspen Media, Blower Style, UL ListedPhoenix UD8801 Commercial Evaporative Cooler, Down Discharge, Aspen Media, Blower Style, UL Listed

Phoenix UD8801 Commercial Evaporative Cooler, Down Discharge, Aspen Media, Blower Style, UL Listed

Phoenix D8801 Commercial Evaporative Cooler, Down Discharge, Aspen Media, Blower StylePhoenix UD8801 Commercial Evaporative Cooler, Down Discharge, Aspen Media, Blower Style, UL Listed

Phoenix D8801 Commercial Evaporative Cooler, Down Discharge, Aspen Media, Blower StylePhoenix UD8801 Commercial Evaporative Cooler, Down Discharge, Aspen Media, Blower Style, UL Listed

Phoenix UD8801 Commercial Evaporative Cooler, Down Discharge, Aspen Media, Blower Style, UL Listed

Technical Downloads:

Phoenix UD8801: Specification Submittal.

Phoenix UD8801: Commercial Aspen Coolers Product Brochure.

Phoenix UD8801: Commercial Aspen Coolers Owners Guide (English).

Phoenix UD8801: Commercial Aspen Coolers Owners Guide (Spanish).

Phoenix UD8801: Replacement Parts List.

Phoenix UD8801: Warranty Information.
