Mifab RG2016DD RoofGuard 19" Poly Universal Replacement Roof Drain Dome

Mifab RG2016DD RoofGuard 19" Uncloggable Polyethylene Universal Replacement Roof Drain Dome.

Features & Benefits:

• Makes Roof Drains Uncloggable.
• Fits most commercial roof drain manufacturers up to 15" in diameter.
• The ultimate replacement roof drain dome.
• Eliminates standing water.

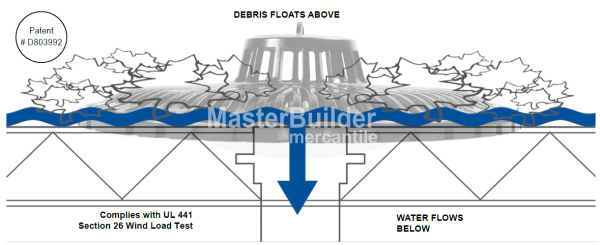

• Patented design increases surface area by up to 5x or more making a RoofGuard protected drain virtually uncloggable. RoofGuard SAVES $$
• RoofGuard works 24/7.
• Eliminates leaks and costly repairs caused by clogged drains.
• RoofGuard will replace any Roof Drain Dome Strainer up to 15” in diameter.
• Installation is fast, simple, and requires no tools.
• Removable Top allows easy access to drain and piping without detaching RoofGuard.
• 10-Year Warranty!

Product Specifications:

MIFAB® - RoofGuard Model RG20166DD polyethylene (with UV inhibitor) replacement roof dome with an 19” diameter, horizontal slotted, free area drainage design. The RoofGuard has a 10 year limited warranty.

Installation Notes:

• Clean and remove all dirt, debris, and other loose material in area around the drain where RoofGuard is to be installed. After cleaning, if the area is wet dry it off removing as much moisture as possible.
• Remove and dispose of current drain dome strainer.
• Turn RoofGuard over and fill the Attachment Pods with an exterior adhesive. Make sure the Pods are completely full and over flowing with adhesive to properly bond.
• Turn RoofGuard over to install over the drain. Press firmly on top of the Attachment Pods to ensure good adhesion to the roof surface. The body can be detached from the mounting collar for full access.

Technical Downloads:

• Mifab RG2016DD: Specification Submittal
• Mifab RG2016DD: Brochure

Media:

Mifab RG2016DD Features & Benefits Video:

RoofGuard Dome Strainer Installation Video:
