Description

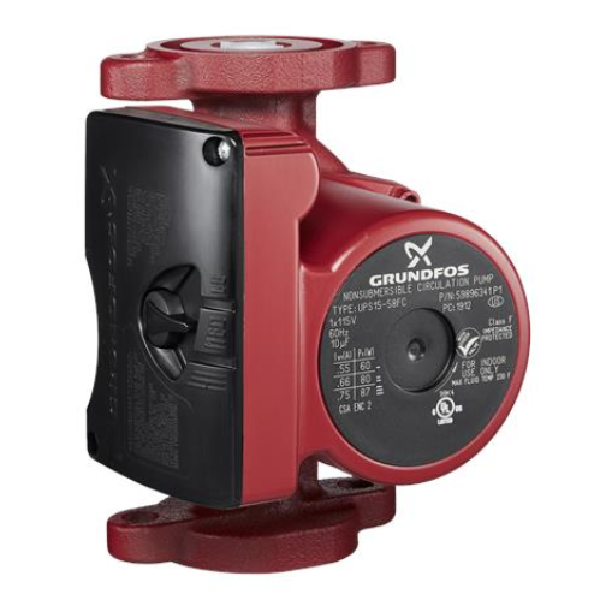

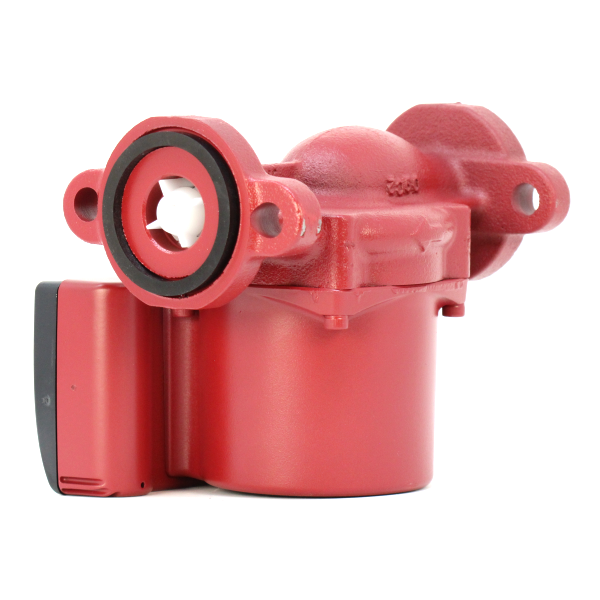

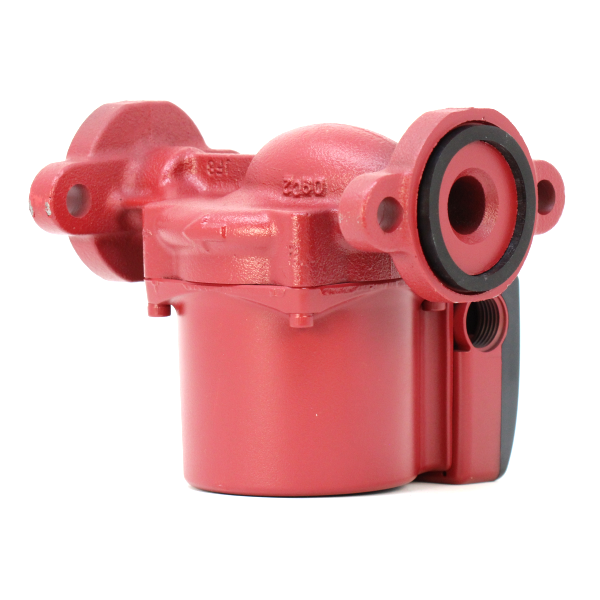

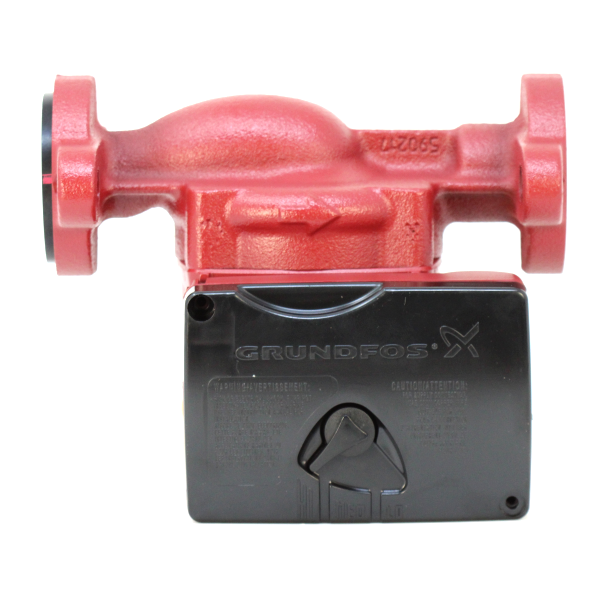

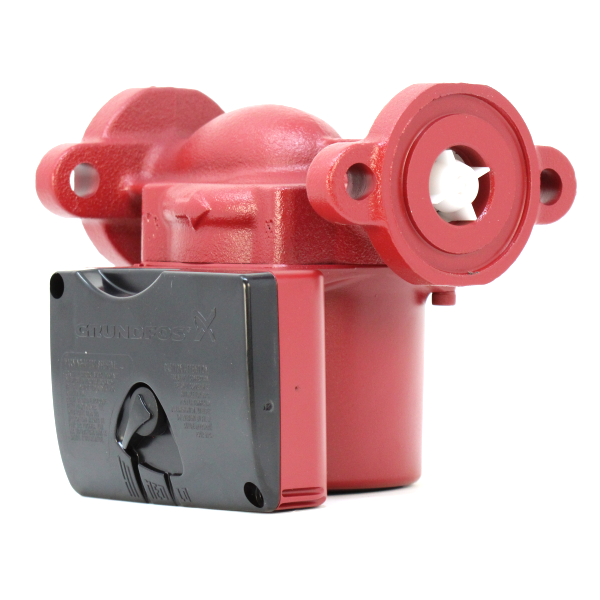

Grundfos 59896341 UPS 15-58 FC Cast Iron Circulator Pump
Specifications:
Technical
Speed Number: | 3 |
Maximum flow: | 17.2 US gpm |
Max flow: | 17.2 US gpm |
Maximum head: | 19.36 ft |
Head max: | 19.36 ft |
Approvals on nameplate: | UL, CSA |
Valve: | pump with built-in isolating and non-return valves |
Materials
Pump housing: | Cast iron |
: | EN-JL1030 |
: | ASTM 30 B |
Impeller: | Composite, PES |
Installation
Maximum ambient temperature: | 104 °F |
Ambient max at 176°F liquid: | 176 °F |
Maximum operating pressure: | 145.04 psi |
Flange standard: | USA Oval |
Type of connection: | C.I. Flange |
Pipe connection: | 2 - Bolt Flange |
Pressure stage: | PN 10 |
Port-to-port length: | 6 1/2 in |
Liquid
Pumped liquid: | Water |
Liquid temperature range: | 35.6 .. 230 °F |
Selected liquid temperature: | 140 °F |
Density: | 61.35 lb/ft³ |
Electrical Data
Power input in speed 1: | 0.0805 HP |
Power input in speed 2: | 80 W |
Max. power input: | 87 W |
Main frequency: | 60 Hz |
Rated voltage: | 1 x 115 V |
Current in speed 1: | 0.55 A |
Current in speed 2: | 0.66 A |
Current in speed 3: | 0.75 A |
Capacitor size - run: | 10 µF/180 V |
Number of poles: | 2 |
Insulation class (IEC 85): | F |
Motor protection: | CONTACT |
Thermal protec: | internal |
Controls
Pos term box |
9H |
Others
Gross weight: | 7.25 lb |
Country of origin: | US |
Custom tariff no.: | 8413.70.00.21 |
