Continental Fan Manufacturing Inc. CFM CMX-10-BK-001 Comfort Max HVLS (High Volume, Low Speed) Commercial Ceiling Fan, 10’ Diameter Blade Kit, Anodized Aluminum Finish w/ CMX-10-34-MK-001 Motor Kit (200-480/3/5-60)
Product Overview:
Continental Fan’s New Comfort Max Fans are designed to redistribute heated or cooled air to floor level. These high volume, low speed fans eliminate temperature layers in the ceiling space and create a more comfortable environment inside a building. When a Comfort Max Fan is integrated with an HVAC system, the net result is energy savings and CO2 emission reduction.
Features & Benefits:
- High efficiency EC brushless motor, continuous duty operation
- Robust steel structure for long life
- Virtually silent, 5-blade aluminum airfoils
- Corrosion resistant, anodized aluminum airfoil design
- Plastic, aerodynamically-shaped blade terminals

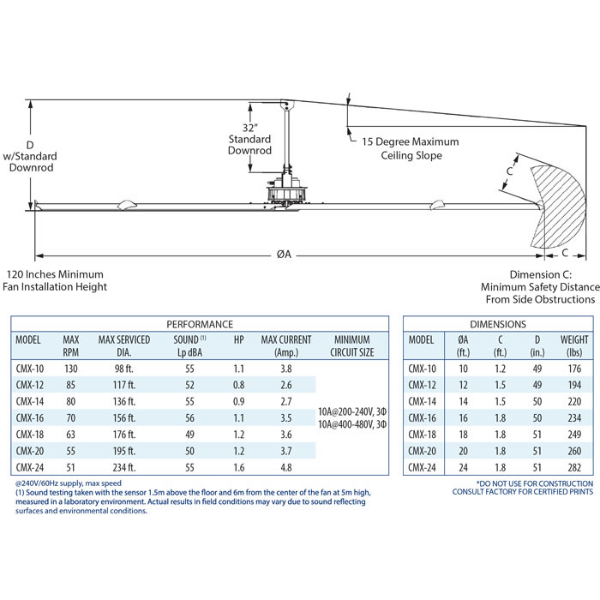

- Standard 32-inch downrod, other sizes available
- Optimized performance and acoustic comfort
- Security wire, stabilizing cables and hub ring for safety
- 200-240Vac or 400-480Vac, 50/60 Hz, 3 phase operation
- Speed controllable
- Maintenance-free, gearless motor
- Maximum permissible ambient temperature: 120 F
- Integrated EMC (electromagnetic interference) filters
- IP65 motor protection
- Easily clean with low pressure water jets
- Sizes range from 10’ to 24’
What's Included:
- Blade Kit
- Motor Kit:
- Ceiling mount hardware and brackets
- Downrod - 32 inch - galvanized steel
- Motor assembly and hardware
- Plastic components
- Electrical cables
- Safety cables
Optional Accessories:
- Different length downrod
- Potentiometer speed control
- Smart touch controller
- I-beam mounting kit
- Glulam mounting kit
- Z purlin brackets
Applications:
- Commercial:
- Shopping malls
- Gymnasiums
- Big box stores
- Schools
- Places of worship
- Industrial:

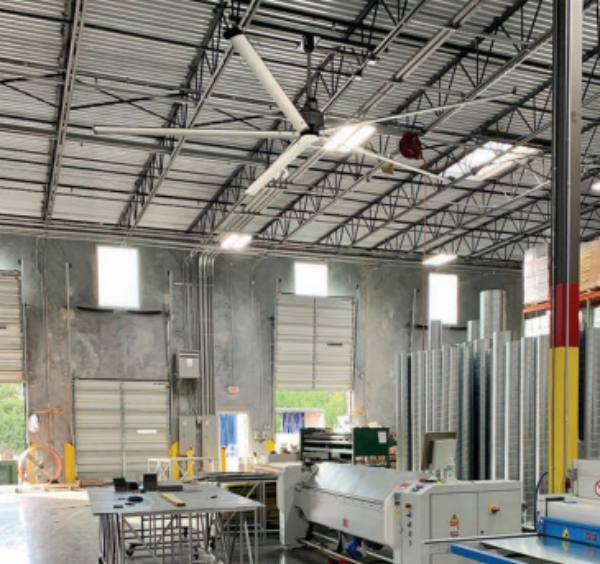

- Warehouses
- Distribution centers
- Airport hangars
- Automotive showrooms
- Refrigeration / cold storage
- Agriculture:

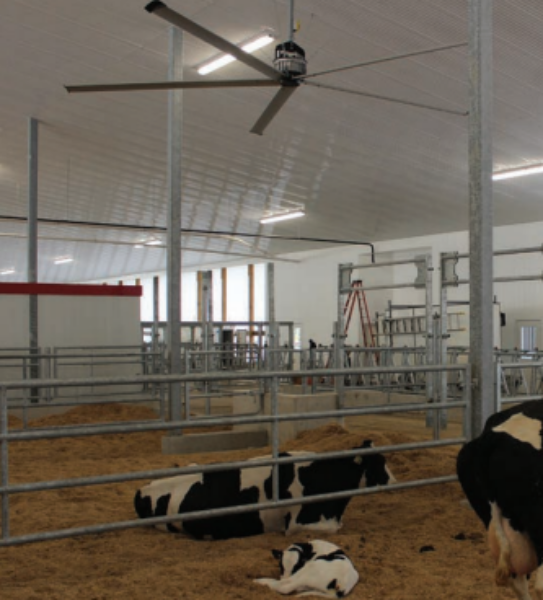

- Dairy barns
- Greenhouses
- Horse stables
- Produce farms
NFPA 13 STANDARDS FOR HVLS FANS
- Maximum allowable fan diameter of 24 feet.
- Fans must be approximately centered between four adjacent sprinklers.
- There must be a 3 foot minimum clearance from the sprinkler deflector to the fan.
- Fans must be interlocked to shut down immediately upon receiving a water flow signal from the fire alarm system.
Technical Downloads:
-
CFM CMX: Brochure
