CONTINENTAL FAN CFM AXP250 10" Centrifugal In-Line Duct Fan 735 CFM (Plastic Housing).
Overview:
AXP In-Line Duct Fans are designed for residential, commercial, and light industrial ventilation applications. AXP in-line duct fans incorporate a durable, UV resistant plastic housing. They are available in duct diameters from 4″ thru 12″, and produce airflow capacity up to 837 cfm. The quiet and efficient backward-curved motorized impeller is capable of developing significant pressure. Above all, the in-line configuration simplifies installation, saving time and money.
AXP in-line duct fans are capable of moving airflow through long or complex duct runs. As a result, they provide an ideal solution for areas that are difficult to heat or cool.
Features & Benefits:
- UV and corrosion resistant, durable plastic housing
- 120V operation, other voltages available
- Easy to install – mounting brackets included
- May be mounted in any position
- Fans may be used to supply or exhaust air
- Suitable for air temperatures up to 122 F
- Energy efficient – speed controllable (optional solid state speed control)
- Optional pre-wired with 120V power cord (AXP-C)
- Exceptionally quiet and efficient BC centrifugal motorized impeller
- External rotor motor design results in superior motor cooling and durability
- Permanently lubricated ball bearing motor for maintenance-free operation
- Automatic reset thermal overload protection
- Fan and motor are precision balanced for quiet and vibration-free operation
- Easily accessible, external junction box with pre-wired capacitor
- Available to fit duct sizes 4” – 12”; airflow capacity to 837 cfm
Applications:
In a home or residence, there are many locations where air movement may be necessary.
Residential applications include:
- Bathroom Exhaust
- Whole house ventilation
- Duct boosting
- General kitchen exhaust
- Laundry room exhaust
- HRV / ERV boosting
Commercial applications include:
- Conference room exhaust
- Computer rooms
- Humidity & moisture removal
- Powered make-up air
- Equipment & spot cooling
- Hair & nail salons
Dimensions:

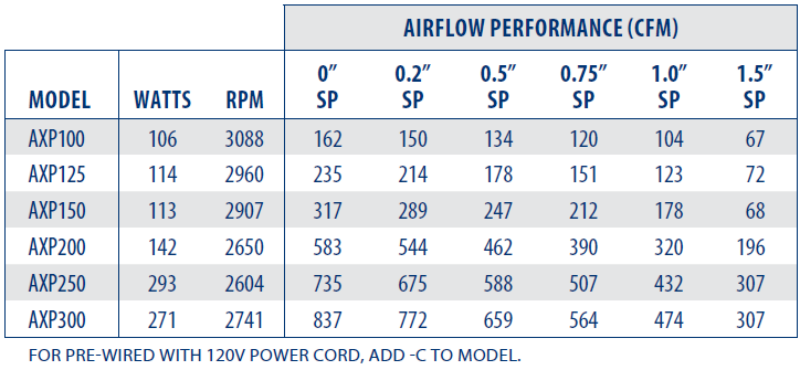

Performance:
Technical Downloads:
- CFM AXP250: Brochure
- CFM AXP250: Dimensional Drawing
- CFM AXP250: PDF Installation
