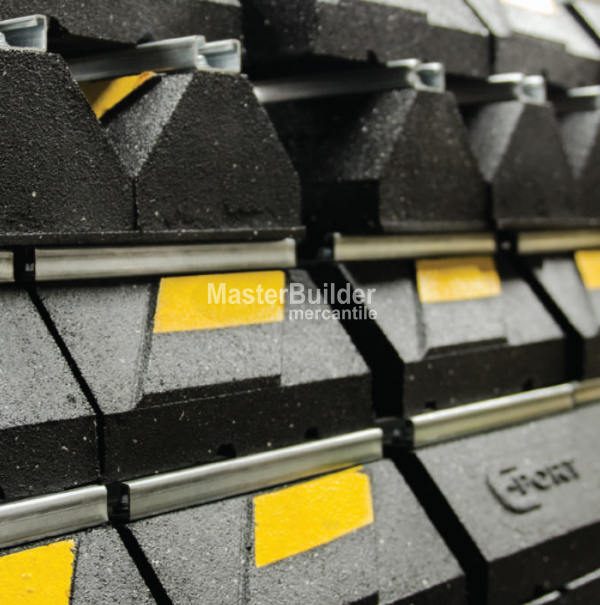

C-PORT C Series Rubber Roof Support with 13/16" Galvanized Steel Channel

C-PortSKU: MIF-CPO-C10

Model # (L x W x H): C10 (4-7/8" x 6" x 9.6")
Price:
Sale Price$30.99 USD
Description

C-PORT C Series Rubber Roof Support with 13/16" Galvanized Steel Channel

C-PORT C Series Rubber Roof Support with 13/16" Galvanized Steel Channel.

Product Overview:

  • The C Series channel support is designed for superior support of gas and refrigeration piping systems, cable tray, electrical conduit, multiple lines, HVAC equipment and hundreds of other applications.
  • It is available in any length as a roof curb (sleeper) replacement.
  • Maximum Load 750 LBS per Foot.
  • Strut Clamps sold separately. Click Here

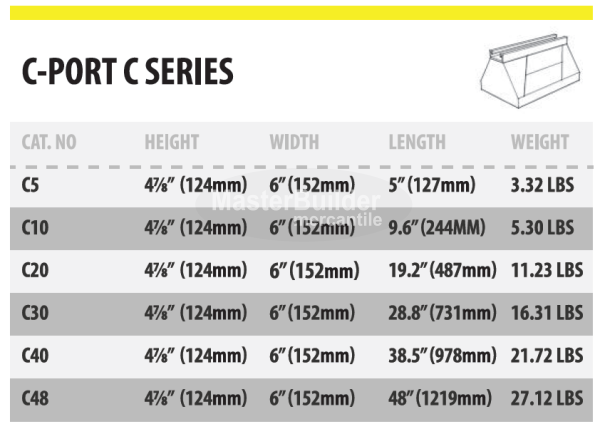

SKU HEIGHT WIDTH LENGTH WEIGHT MAX LOAD
C10 4-7/8" (124mm) 6" (152mm) 9.6" (244mm) 5.30 lbs. 750 lbs.
C20 4-7/8" (124mm) 6" (152mm) 19.2" (487mm) 11.23 lbs. 1500 lbs.
C30 4-7/8" (124mm) 6" (152mm) 28.8" (731mm) 16.31 lbs. 2250 lbs.
C40 4-7/8" (124mm) 6" (152mm) 38.5" (978mm) 21.72 lbs. 3000 lbs.
C48 4-7/8" (124mm) 6" (152mm) 48" (1219mm) 27.12 lbs. 3750 lbs.

    Features & Benefits:

    • 100% Recycled Rubber
    • No supplemental pad
    • No float
    • No deterioration
    • Dampens vibrations
    • Compatible with most rooftop materials

    Product Applications:

    • Gas Pipes
    • Refrigeration Pipes
    • Electrical Conduit
    • HVAC
    • Platform Systems
    • And more...

    Technical Specification:

    • Material:
      • Base: 100% recycled rubber, UV resistant
      • Strut: 14-gauyge galvanized channel strut (13/16" high)
    • Warranty: 10-Years
    • Recommended Spacing: Refer to Local Code
    • May qualify for L.E.E.D. credits
