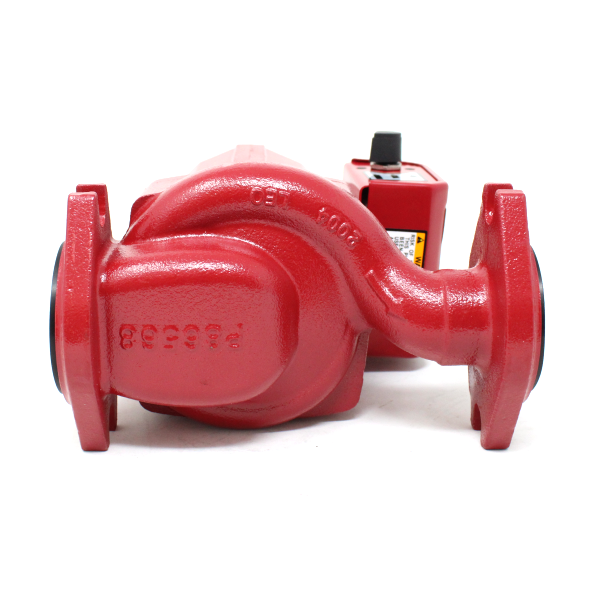

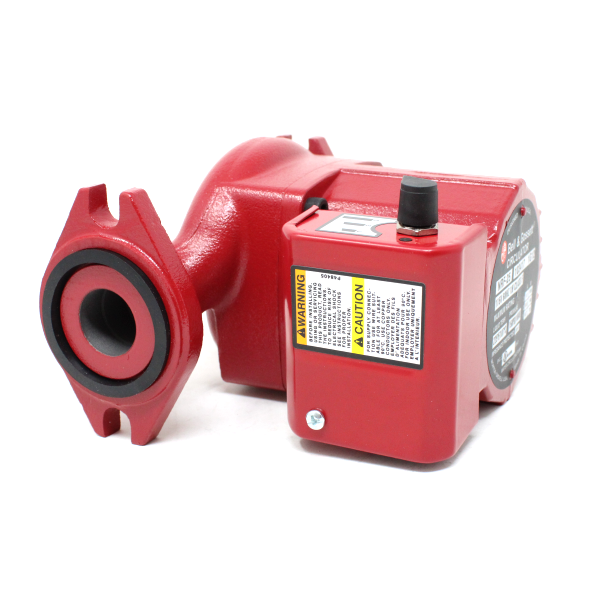

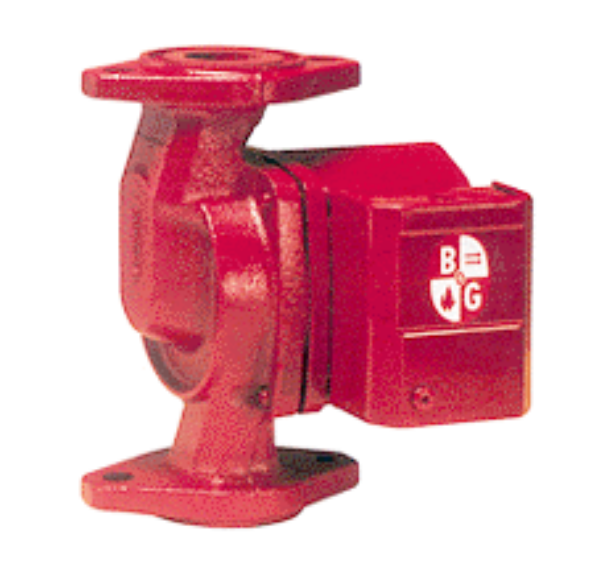

Bell & Gossett 103417 NRF-25 Cast Iron Circulator Pump 1/15HP 3 Speed

Bell & GossettSKU: B&G-103417

Price:
Sale Price$199.99 USD
Stock:
In Stock
Description
Bell & Gossett 103417 NRF-25 Cast Iron Circulator Pump 1/15HP 3 Speed

Bell & Gossett 103417 NRF-25 Cast Iron Circulator Pump 1/15HP 3 Speed.

Product Features:

  • High starting torque for dependable seasonal start-ups (Up to 80% more than competing circulators)
  • Unique B&G DuraGlide Bearing System assures years of trouble-free start-ups
  • Closed impeller design improves operating efficiency
  • Backed by B&G’s representatives and a 3-year warranty–the best in the business
  • DuraGlide Bearing System incorporates several components working together to eliminate seasonal freeze-up
  • Stabilized, heat resistant, polypropylene impeller, its closed design improves operating efficiency
  • Self-cleaning particle shield protects the shaft and bearings from system start-up debris
  • One-piece, high-nickel stainless steel stator can isolates the stator from system fluid and maintains precision bearing alignment for longer bearing life
  • Carbon bearings, diamond-like ceramic shaft and generous clearances are more resistant to lime, chloride and oxide build-up
  • Face plate and rotor sleeve feature corrosion resistant stainless steel construction for longer life

    Specifications:

    Product Section Centrifugal Pumps & Accessories
    Product Subsection Close Coupled Pumps
    Product Series Series NRF
    Model NRF-25*
    Description 103417
    Submittal ID A-126H
    RPM 2950
    A-Dim 5-1/8 (130)
    B-Dim 3-3/16 (81)
    C-Dim 3-3/16 (81)
    D-Dim 6-3/16 (157)
    Voltage 115
    E-Dim 4-7/8 (124)
    F-Dim 6-3/8 (162)
    G-Dim 3-7/8 (98)
    CAD model unit system inch/pound
    AutoCAD / AutoCAD MEP support https://dpk3n3gg92jwt.cloudfront.net/domains/bellgossett/ACIS_file_Import_Instruction.pdf
    Download Revit File https://dpk3n3gg92jwt.cloudfront.net/domains/bellgossett/revit_families/2021.01 NRF_NBF_SSF_LR Pumps.zip
    Contact CAD Support http://www.product-config.net/catalog3/bellgossett-support.jsp?id=103417
    Adobe 3D PDF help http://www.product-config.net/catalog3/help/3dviewerhelp.html
    Weight [lb] 10.4
    WATTS 125
    F.L.AMPS 1.10
