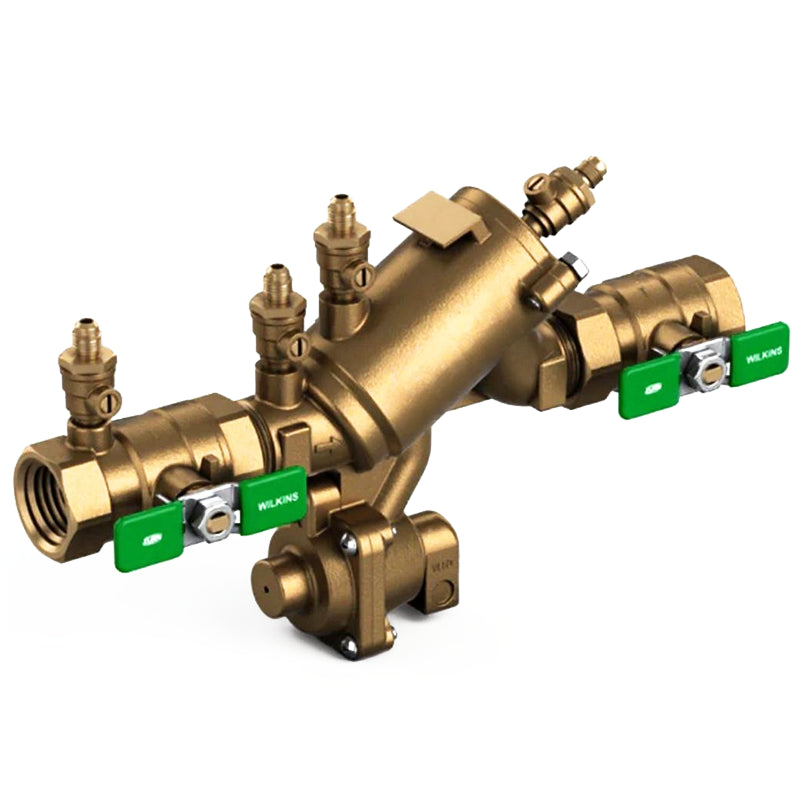

Zurn Wilkins 112-975XL3 1-1/2" Lead-Free Reduced Pressure Principle Assembly Backflow Preventer, Compact Design and Short Lay Length.
Features & Benefits:
- Compact and shortest bronze small backflow valve on the market allowing for installation versatility.
- All-bronze body ensures durability against the elements, with a Noryl®* check body and stainless-steel fasteners to resist corrosion over time.
- EZSwap® modular check with top access speeds up repairs and replacements.
- Test ports located on valve’s centerline make install and testing easy.
- Interlocking connected checks provide ¼ turn to access and disassemble.
- Low-cost repair kits extend the lifespan at a significantly lower cost.
- Lead Free* (0.25% max. weighted average lead content)
- ASSE® Listed, cUPC® Listed, CSA® Certified
- Meets the requirements of NSF/ANSI 61
- Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.
Product Overview:
The Zurn Wilkins 975XL3 Reduced Pressure Principle Backflow Assembly provides high hazard protection against backsiphonage and backpressure in potable water applications. The 975XL3 series offers the most compact and lightest bronze small backflow available on the market today. The design combines the robust time-tested construction of our 975XL/XL2 series with the innovative modular check EZSwap® design of our 375 series allowing for ease of repair and greater labor savings compared to all other brands.
Application:
Ideal for use where Lead-Free* valves are required. Designed for installation on potable water lines to protect against both backsiphonage and backpressure of contaminated water into the potable water supply. Assembly shall provide protection where a potential health hazard exists.
Standard Compliance:
- ASSE® Listed 1013
- cUPC® Listed
- CSA® Certified B64.4
- UL® Classified (less shut-off valves)
- C-UL® Classified
- AWWA Compliant C511
- Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California
- Meets the requirements of NSF/ANSI/CAN 61 and 372* *(Less than 0.25% Weighted Average Lead Content)
Features:
| Sizes: | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
| Minimum Working Water Pressure: | 25 PSI |
| Maximum Working Water Pressure: | 175 PSI |
| Minimum Working Water Temperature: | 33°F |
| Maximum Working Water Temperature: | 180°F |
| Hydrostatic Test Pressure: | 350 PSI |
| Threaded End Connections (FNPT): | ANSI B1.20.1 |
Technical Downloads:
- Zurn Wilkins 112-975XL3 Backflow Preventer: Specification Submittal
- Zurn Wilkins 112-975XL3 Backflow Preventer: Installation Instructions
- Zurn Wilkins 112-975XL3 Backflow Preventer: Brochure
- Zurn Wilkins 112-975XL3 Backflow Preventer: Repair Parts List
