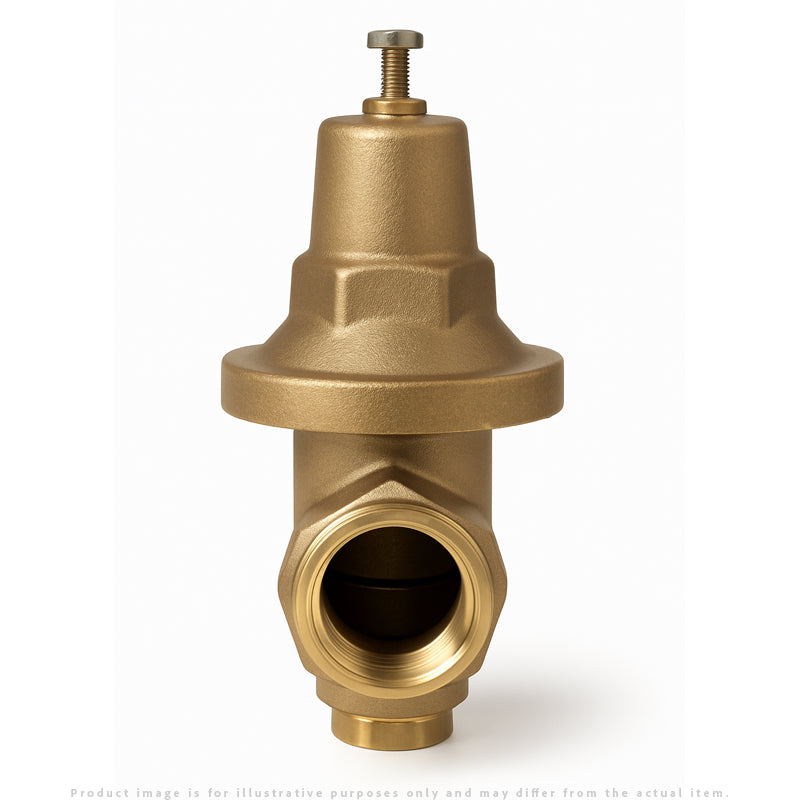

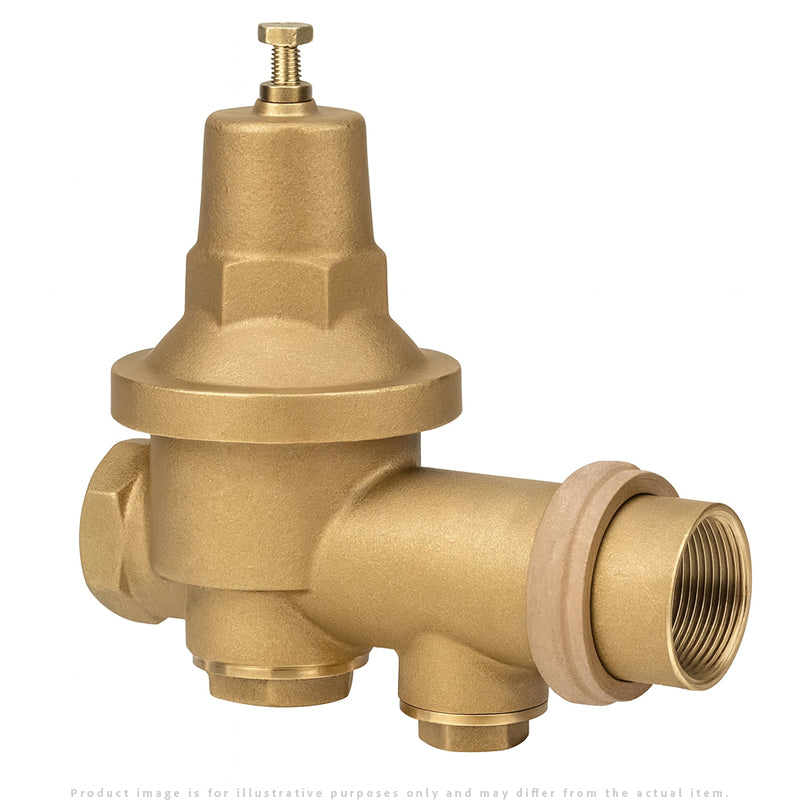

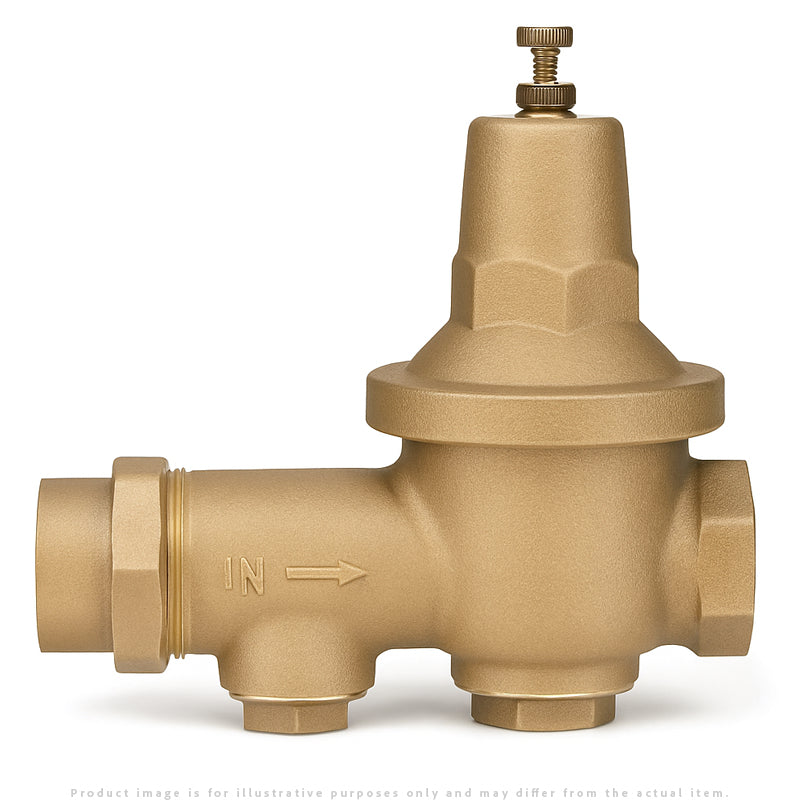

Zurn Wilkins 600XL Pressure Reducing Valve.
Features & Benefits:
- Sizes: 1/2", 3/4", 1", 1-1/4", 1-1/2" 2"
- Maximum working water pressure - 300 psi
- Maximum working water temperature - 140 F
- Reduced pressure range - 25 psi to 75 psi
- Factory preset pressure - 50 psi
- Hydrostatic test pressure - 300 psi
- Standard with single union FNPT inlet x FNPT outlet
Application:
Zurn Wilkins model 600XL is designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. The integral strainer makes this device most suitable for residential and commercial water systems requiring frequent cleaning because of sediment and debris. The direct acting integral by-pass design prevents buildup of excessive system pressure caused by thermal expansion. The balanced
piston design enables the regulator to react in a smooth and responsive manner to changes in system flow demand, while at the same time, providing protection from inlet pressure changes.
Standard Compliance:
- ASSE® Listed 1013
- IAPMO® Listed
- CSA® Certified
- City of Los Angeles Approved
- Meets the requirements of NSF/ANSI/CAN 61 and 372* *(Less than 0.25% Weighted Average Lead Content)
Technical Downloads:
- Zurn Wilkins 600XL PRV: Specification Submittal
- Zurn Wilkins 600XL PRV: Installation Instructions
