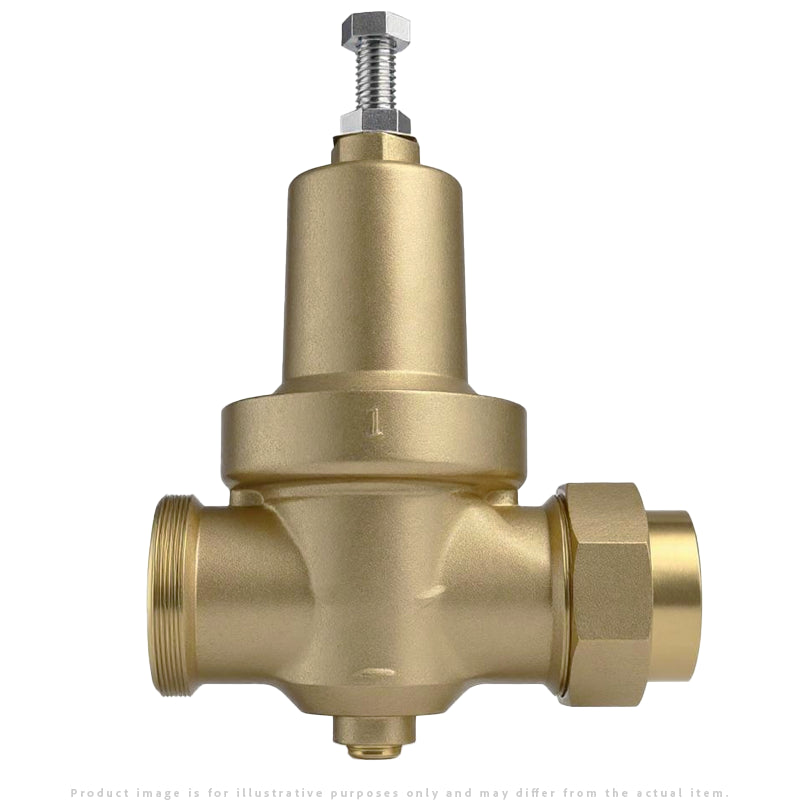

Zurn Wilkins 500XL3 Water Pressure Reducing Valve.
Features & Benefits:
- Sizes: 1", 1-1/4", 1-1/2" 2"
- Maximum working water pressure - 400 psi
- Maximum working water temperature - 140 F
- Reduced pressure range - 15 psi to 75 psi
- Factory preset pressure - 50 psi
- Standard with single union FNPT inlet x FNPT outlet
Application:
Zurn Wilkins model 500XL3 designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. The patented integral venturi enables the valve to have best-inclass flow performance. The high flow capacity makes this device
most suitable for commercial plumbing systems and Industrial water lines. The direct acting integral by-pass design prevents buildup of excessive system pressure caused by thermal expansion (1" - 2"). The balanced piston design enables the pressure reducing valve to react in a smooth and responsive manner to changes in system flow demand, while at the same time, providing protection from inlet pressure changes. Includes a removable cartridge and corrosion resistant materials.
Standard Compliance:
- ASSE® Listed 1003
- cUPC® Listed
- CSA® Certified B356
- Meets the requirements of NSF/ANSI/CAN 61 and 372* *(Less than 0.25% Weighted Average Lead Content)
Technical Downloads:
- Zurn Wilkins 500XL3 PRV: Specification Submittal
- Zurn Wilkins 500XL3 PRV: Installation Instructions
