MIFAB MI-GARD Series Floor Drain Trap Seal
Product Specification:

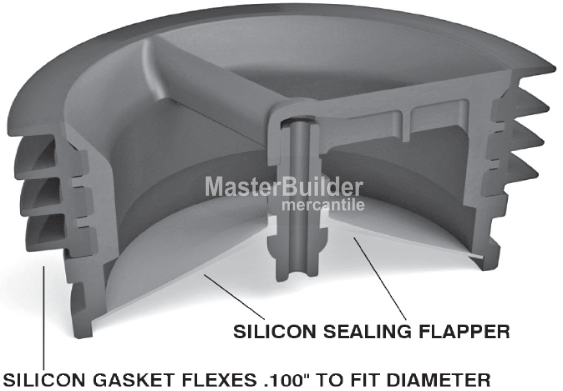

MIFAB® MI-GARD® Series inline floor drain trap seal with UV resistant ABS plastic frame, silicon rubber sealing flapper and four flexible sealing ribs. Tested and certified to the ASSE 1072 Standard and listed with IAPMO and I.C.C. Specify connection size (1 1/2”, 2”, 3”, 3 1/2”, 4” or 6”).
Product Function:
Used in the outlet connections of floor drain bodies, or the inside of floor drain strainers to seal the opening to prevent odors, sewer gases, and insects from entering up through the floor drain grate. The MI-GARD®’s four flexible silicone sealing ribs ensure easy installation into openings that have variations in size. The MI-GARD® will open to allow drainage and close when there is no water flow.
Product Installation:

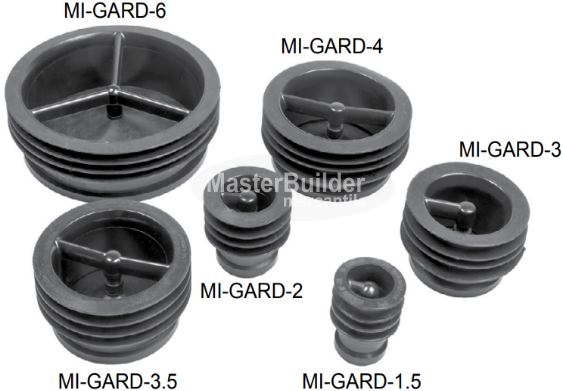

The MI-GARD-150 (1 ½”), MI-GARD-2 (2”), MI-GARD-3 (3”), MI-GARD-35 (3 ½”), MI-GARD-4 (4”) and MI-GARD-6 (6”) Floor Drain Trap Seal Devices install into either the outlet connections of floor drain bodies or into the inside of floor drain strainers.

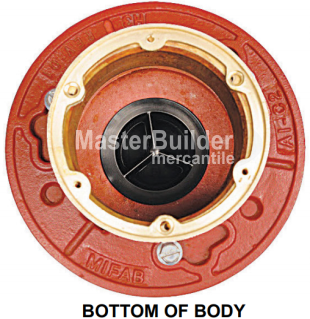

To install into the outlet connections of floor drain bodies, remove the grate or strainer and place the appropriate size MI-GARD product (match the opening size 1 ½”, 2”, 3”, 3 ½”, 4” or 6” with the product size) into the inside of the floor drain body outlet connection. The four flexible silicon exterior sealing ribs ensure easy installation into openings that have variations in size.

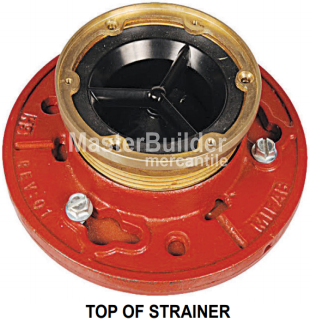

To install into the inside of floor drain strainers, remove the grate or strainer and place the appropriate size MI-GARD product (match the opening size 1 ½”, 2”, 3”, 3 ½”, 4” or 6” with the product size) into the inside of the throat of the strainer. The four flexible silicon exterior sealing ribs ensure easy installation into openings that have variations in size.
Technical Downloads:
- MIFAB MI-GARD Series: Specification Submittal
