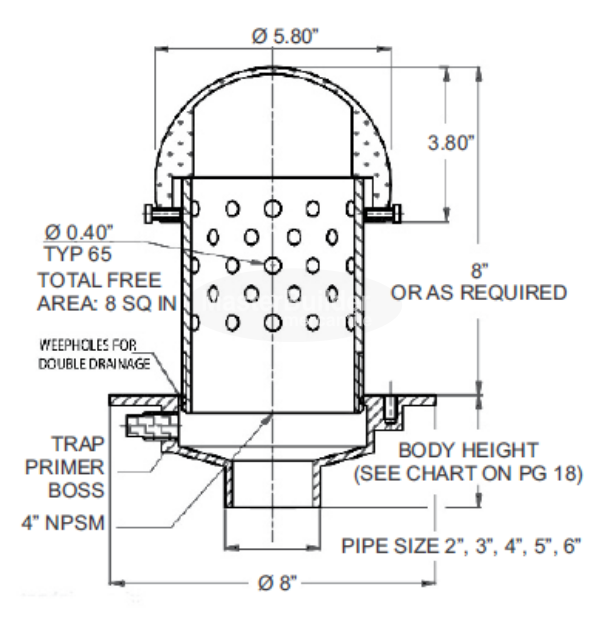

MIFAB F1830-P-3 | F1832-P-3 | F1833-P-3 | F1834P-3 Series Planting Area Drain with 8" High Perforated Standpipe and Stainless Steel Dome.
Function:
Used in areas such as flower boxes and others where the drain is buried underground. Perforated standpipe allows for sub surface drainage of water. The stainless steel dome secured to the top of the standpipe is set at ground level and permits the drainage of excess surface water. Membrane clamp is provided to secure the waterproofing membrane.
Product Specification:
MIFAB® Series F1830-P lacquered cast iron standpipe type planting area drain with anchor flange, cast iron membrane clamp ring with primary and secondary weepholes for waterproofing membrane, and adjustable 4” (102) diameter ABS perforated standpipe and stainless steel secured dome.
Technical Downloads:
- MIFAB F1830-P-3: Specification Submittal
