Zurn Z609 / ZN609 – 9" Square Heavy-Duty Floor Drain

Product Overview

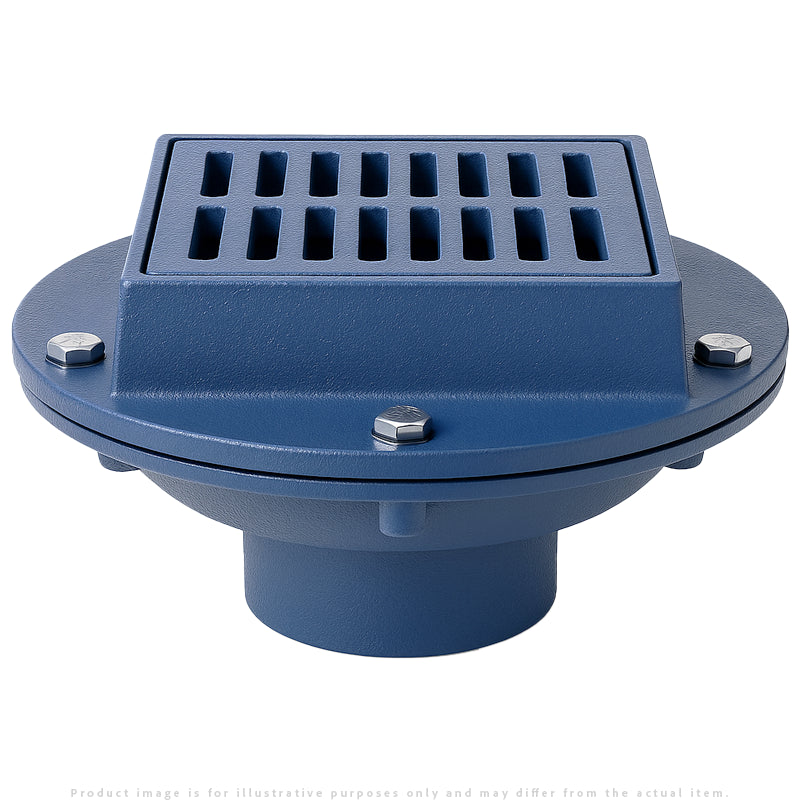

The Zurn Z609 9" Square Heavy-Duty Drain is designed for commercial and industrial environments requiring long-lasting performance and reliable drainage. Built with a Dura-Coated cast iron body, integrated seepage pan, membrane flashing clamp, and heavy-duty anti-tilt grate, this drain provides superior durability and simplified installation.

Features & Benefits

• Heavy-duty square anti-tilt grate for stable, high-traffic performance
• Dura-Coated cast iron body for corrosion resistance
• Choose cast iron, or polished nickel bronze top
• Compatible with IC, IG, IP, NH, and NL outlet types
• Contractor-friendly design reduces installation time and rework

Specifications

• Top Size: 9" x 9" (229 mm)
• Body: Dura-Coated cast iron
• Grate Options: Cast iron, polished nickel bronze
• Connection Sizes: 2", 3", 4"
• Outlet Types: IP, NH, NL
• Approx. Weight: 32 lbs
• Grate Open Area: 14 sq. in.

Installation Tips

• Ensure proper clamping of membrane flashing for waterproof integrity
• Match outlet type to existing piping (NH, NL, IP, etc.)
• Use optional sediment bucket for debris-prone areas
• Avoid abrasive cleaners on decorative bronze and nickel bronze tops

Frequently Asked Questions

Q: What is the difference between Z609, ZB609, and ZN609?
A: Only the top material differs—cast iron (Z609), polished bronze (ZB609), or polished nickel bronze (ZN609).

Q: Is this suitable for high-traffic areas?
A: Yes, the anti-tilt heavy-duty grate is engineered for commercial use.

Q: Are sediment buckets available?
A: Yes, the sediment bucket is available with suffix "-Y".

Q: What outlet types can I order?
A: IC, IG, IP, NH, and NL in 2", 3", and 4" sizes.

Q: Can this be used with waterproofed floors?
A: Yes, the membrane flashing clamp supports proper waterproofing installation.
